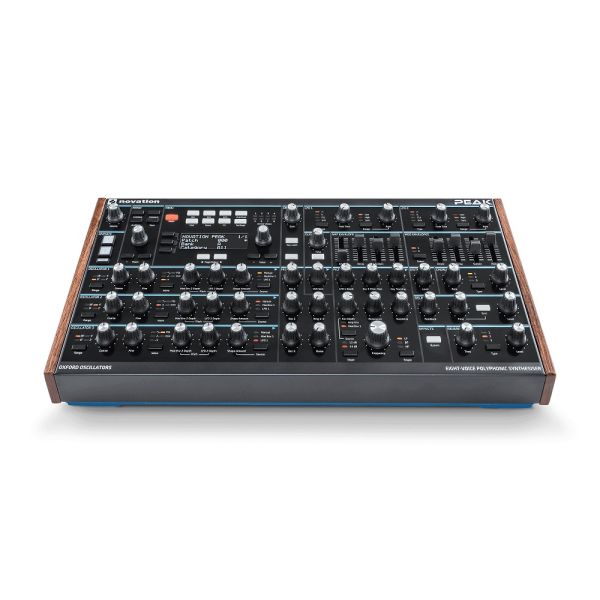

Novation Peak 8 Voice Hybrid Analogue/Digital Polyphonic Synthesiser
SKU
245385
£1,599.00
In stock
Novation Peak 8 Voice Hybrid Analogue/Digital Polyphonic Synthesiser
Category: Synthesizers & Samplers
Peak is an eight-voice desktop polyphonic synthesiser built around New Oxford Oscillators that combine the best of analogue sound and digital flexibility – including inbuilt and custom digital wavetables. With a resonant multi-mode analogue filter for each voice, and three separate points of distortion per voice, it’s truly the best of both worlds.
Polyphonic aftertouch, an extensive mod matrix, and two dedicated Animate buttons allow for endlessly expressive performances, while lush onboard reverb, delay and chorus round off a formidable addition to any sound designer’s arsenal.
Polyphonic aftertouch, an extensive mod matrix, and two dedicated Animate buttons allow for endlessly expressive performances, while lush onboard reverb, delay and chorus round off a formidable addition to any sound designer’s arsenal.
- Digital where it counts — Digital FPGA-generated New Oxford Oscillators for analogue-style, wavetable and FM synthesis
- Analogue where it matters — an analogue filter, analogue VCAs and three stages of analogue distortion per voice
- High-quality digital effects — stunning reverb, delay, and chorus effects are instantly accessible via the effects section
- Extensive modulation system — 16-slot modulation matrix and 16 direct assignments controllable from the front panel
- Wavetable Editor — featuring drawing tools and a Live Edit mode, so you can draw your own oscillator shapes and preview them in real time
Overview
Dimensions
Software compatibility
Power requirements
Synth engine
Waveforms include
Filter
Modulation
Misc
- 42 Control knobs
- 8 35mm Sliders
- 1 Volume knob
- 2 Data encoders
- Rubberised knob caps with spun metal discs
- 30 Function buttons (not lit)
- 16 Function buttons (lit)
- 2 Animate buttons plus hold button
- 90 Indicator LEDs
- OLED display
- Kensington Security Slot
- Power switch
- Power supply connector
- USB B 2.0 / MIDI comms only (no bus-power)
- MIDI In / Out / Thru
- 2 1/4" jack socket for continuous or switched pedals
- 3.5mm jack socket for CV in
- 1/4" jack sockets for left and right outputs
- 1/4" jack socket for headphone output
- Metal chassis with American walnut wooden end cheeks
- Metal magnetic inset end pieces
Dimensions
- Width: 233mm
- Depth: 464mm
- Height: 70.5mm
Software compatibility
- Ableton Live Lite is included
- Peak is a USB-MIDI class compliant device
Power requirements
- Maximum power consumption 12V DC 1A
Synth engine
- 8 voice polyphonic (voice modes available unison etc.)
- Mono-Timbral
- 5 Voice Modes - Mono, MonoLG, Mono2, Poly, Poly2
- 3 oscillators
- 1 noise generator
- 1 ring modulator
- 2 LFOs
- 1 Amp envelope and 2 mod envelopes
- 1 Filter
Waveforms include
- Sine, tri, sawtooth, square / pulse plus 17 wavetables of 5 waveforms per row
Filter
- 1x State variable OTA filter per voice
- 12/24dB slope
- Low-pass / band-pass / high-pass
- Pre-filter overdrive
- Post-filter distortion
Modulation
- 16 modulation slots per patch
- Each slot has 2 sources to 1 destination
- Analogue distortion
- Chorus - 3 types
- Delay with 16 types of delay sync, LP and HP damping, slew and stereo
- Reverb - 3 types
Misc
- Arpeggiator w/ key latch – 33 patterns
- Patch storage - up to 512 on hardware (ships with 256 factory patches)
- Glide
- All knobs (excl. volume), sliders and most buttons transmit and receive MIDI cc commands for external control and mapping
1 Year Warranty
