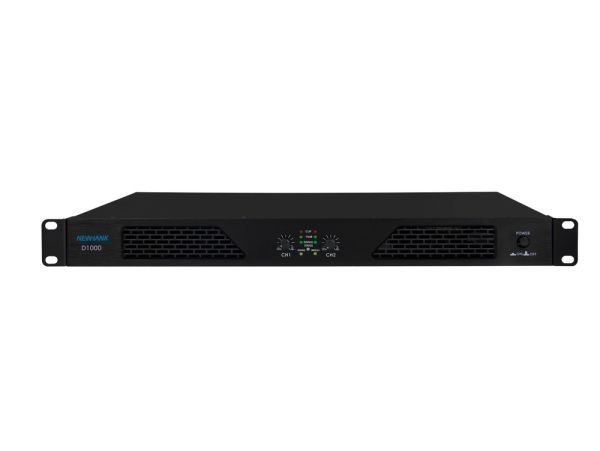

Newhank D1000 2x 500w 1U Power Amplifier
SKU
308247
Category: Amplifiers
D1000 is a 1 Unit 2x 500W/4ohm, Class D Digital Power Amplifier. XLR balance input and professional SPEAKON output connectors
- Unique and elegant enclosure design
- Carefully selected high quality components
- Class D Toplogy integrated with switch power supply design
- Powerful output and high efficiency
- Low electricity consumption
- Accurate volume control, switch on/off, signal, clip and protection LEDs are located on the front panel
- Fully automatic protection circuit for each channel, including direct current protection, thermal protection, over-load protection and amplitude limit
- Variable speed fan controller with temperature sensor
- XLR balance input and professional SPEAKON output connectors
- Stereo, Mono or Bridge operation
- Just 1 unit high and only 4.95kg, easy to move and install
- 2 year warranty
- Power Consumption: 680W
-
Weight: 4.95kg
-
Input Sensitivity: 0dB
-
Input impedance(nominal): 10K ohms/20K ohms
-
Damping Factor: >300 (8ohm ),10Hz-400Hz
-
S/N Ratio (20Hz-20Khz,4 Ohms): >112dBA
-
Dimensions (WxHxD): 483x44x350mm
-
4 Ohm Output power: 500Wx2
-
8 Ohm Output power: 300Wx2
-
8 Ohm Bridge output power: 1000W
-
Frequency Response (at 1 Watt): 20Hz-20KHz,+0/-1dB • Total harmonic Distortion (THD)
-
Voltage Gain: 40dB
1 Year Warranty
