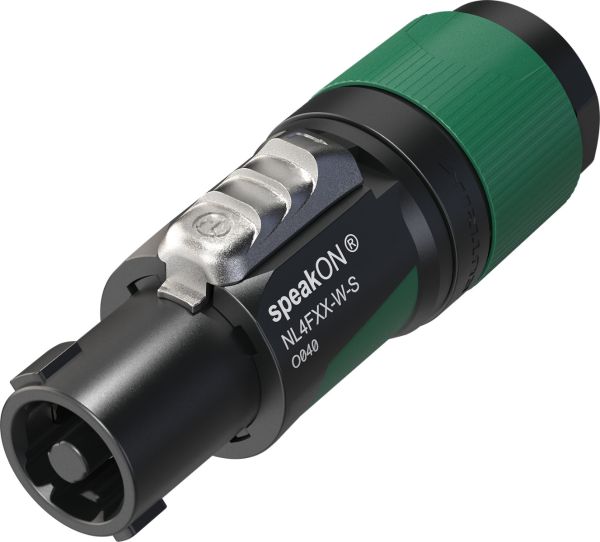

4 pole speakon cable connector, screw terminal assembly, chuck type strain relief for cable diameters 6 to 12 mm and 10-16mm Speakon connectors are the industry-standard for loudspeaker connections.

This product series offers extremely reliable and robust cable connectors with a proven twist lock system.

Speakon cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

Up to 37 A rms current rating
Easy to assemble because the strain relief locks withthe insert mechanically and aligns with the housing
Ergonomic design with slip-proof two-componentmolded housing
Easy and reliable twist lock system
Improved kink protection by two-component bushing

Cable: dimensions 6 -12mm
Contact resistance: ≤ 2 mΩ
Lifetime: Typically 5’000 mating cycles
Terminals: Screw type
Temperature range: -33 °C to +80 °C
IP rating: IP20

1 Year Warranty
