Moog LABYRINTH
SKU
546867
£579.00
In stock

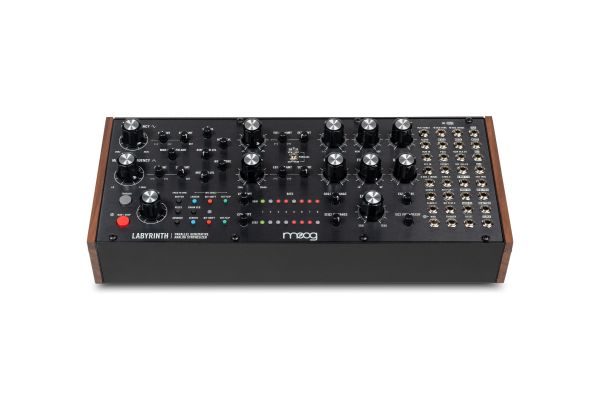

Moog LABYRINTH
Category: Synthesizers & Samplers
Labyrinth, a semi-modular instrument and idea machine, discovers patterns, layers, and textures both familiar and unheard.
Two generative sequencers bring to life sounds that bloom over time, letting you control their evolution and scale, then play them off of each other for striking polymetric melodies.
With parallel analog signal paths, this unique instrument shines when adding color to the static backdrop of a drum pattern or bassline.
Fully capable of standing on its own, or adding depth to your existing rack, it’s equally at home in a live set or at the center of a humble bedroom studio.
Labyrinth is the lightning in a bottle that drives a studio session deeper into undiscovered creative caverns.
The beating heart of Labyrinth is a robust dual sequencer, which uses chance operations to construct two unique eight-step paths which twist and curve around each other, forming a mesmerizing path of sound.
With a comprehensive patch bay, Labyrinth can be synced via analog clock or MIDI while processing, directing, and being influenced by other kit.
Two generative sequencers bring to life sounds that bloom over time, letting you control their evolution and scale, then play them off of each other for striking polymetric melodies.
With parallel analog signal paths, this unique instrument shines when adding color to the static backdrop of a drum pattern or bassline.
Fully capable of standing on its own, or adding depth to your existing rack, it’s equally at home in a live set or at the center of a humble bedroom studio.
Labyrinth is the lightning in a bottle that drives a studio session deeper into undiscovered creative caverns.
The beating heart of Labyrinth is a robust dual sequencer, which uses chance operations to construct two unique eight-step paths which twist and curve around each other, forming a mesmerizing path of sound.
With a comprehensive patch bay, Labyrinth can be synced via analog clock or MIDI while processing, directing, and being influenced by other kit.
- Sine wave oscillators, ring modulators, through-zero FM, and saturating mixers give Labyrinth an unconventional yet classic Moog sound
- A diode-transistor hybrid wavefolder that sounds surprisingly smooth
- A state-variable filter provides a new twist on the Moog sound, morphing from lowpass to bandpass
- Creative patching possibilities for performance alongside other instruments
- An infinite spiral of percussive or melodic sequences that bloom over time
ANALOG SYNTHESIS ENGINE
- Sources: VCO, MOD VCO, RING MOD, NOISE Generator
- Signal Processors: 1x Voltage-Controlled Wavefolder, 1x Voltage-Controlled State-Variable Filter, 2x Voltage-Controlled Amplifiers
- Modulators: 2x Decay-only envelope generators
- Dual Generative Sequencer
- 2x 8-step Generative Digital Sequencers
- Jacks: 32 x 3.5mm
- Inputs: 20 Input Jacks
- Outputs: 12 Output Jacks
- Audio: 1⁄4” TRS Headphone or 1⁄4” TS Instrument
- Power: Power Supply connection
- Security: Kensington Lock slot
- Style: Wall adapter; barrel connection; center-pin positive
- Input: 100 – 240VAC; 50 Hz – 60 Hz
- Output: +12VDC; 1200mA
- Typical: 4.0 W
- Current Draw: 290 mA (maximum) from +12VDC (10-pin header)
- Mounting Dims: 60HP (18mm Module Depth)
- Labyrinth Semi-Modular Parallel Generative Analog Synthesizer
- Power Supply
- Patch Sheet Overlays
- Patch Cables (5x 12")
- Registration Card
- Quickstart Guide
- Cheat Codes
- Safety & Warranty Manual
- Weight (lbs) 3.1 lbs
- Weight (kg) 1.5 kg
- Imperial (in) 12.84” W x 5.64” D x 4.2” H
- Metric (cm) 32.61 W x 14.33 D x 10.67 H
1 Year Warranty
