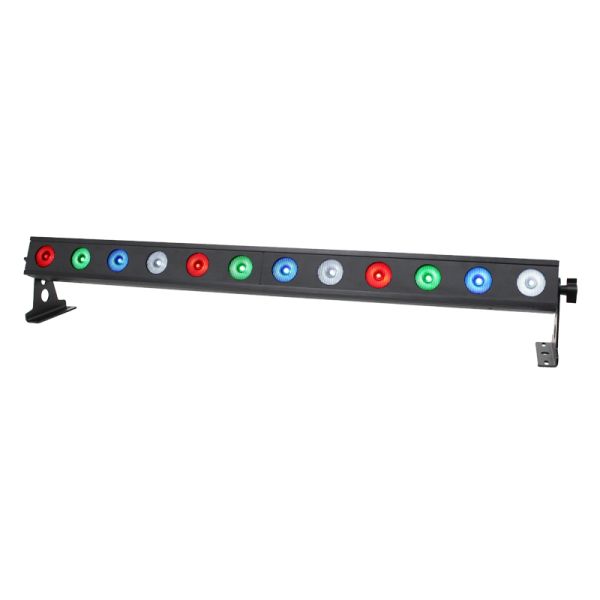

The Pixel Storm 12 MKII is an individually pixel mappable batten featuring 12 x 15W quad-colour LEDs.

With a 10° x 45° beam angle and smooth colour mixing, along with built-in colour macros, it is superb for wall washing due to its ellipsoidal beam angle.

The 4 button LED menu allows selection of the built-in programs, RGBW colour mixing or multiple DMX channel modes.

The 3kHz refresh rate and temperature controlled fan speed make this batten also suitable for stage and theatre applications.

12 x 15W quad-colour LEDs (RGBW)
Beam angle: 10° x 45°
3,851 Lux @ 2m (full on)
Refresh rate: 3kHz
Pixel mapping capabilities
DMX channels: 3/4/6/10/48 or 54 selectable
Static colour, colour mix, colour change, colour fade, sound active and master/slave modes plus built-in programs
0 - 100% dimming
Variable strobe
End brackets and central bracket allow for multiple rigging and floor standing applications
Eyebrow supplied to reduce glare and hide the LEDs when uplighting
4 push button menu with LCD display
powerCON input/output
3-Pin XLR input/output
5-Pin XLR input/output
Temperature controlled fan for whisper quiet operation

Power consumption: 186W
Power supply: 100~240V, 50/60Hz
Fuse: F3A 250V
Dimensions (H x W x D): 155 x 1035 x 145mm
Weight: 6.5kg

1 Year Warranty
