LD Systems U508 HHD 2
SKU
377886
£629.00
In stock

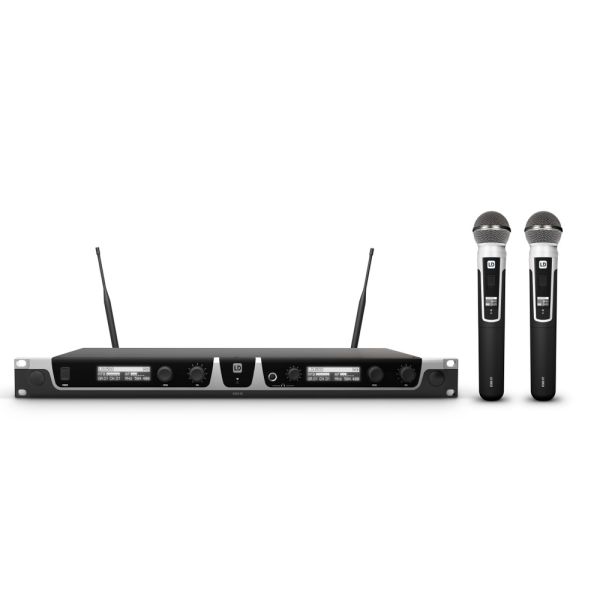

LD Systems U508 HHD 2 Dual - Wireless Microphone System with 2 x Dynamic Handheld Microphone
Category: Wireless Audio Transmission
The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.
The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.
The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.
- True diversity UHF wireless system
- Shock-mounted dynamic and condenser microphone capsules
- Automatic channel scan
- Easy one-touch infrared frequency syncing
- Pilot tone squelch circuit prevents noise
- Switchable RF transmitter output (2, 10 or 30 mW)
- Rugged enclosures
- High-contrast OLED display
-
General
- Product type: Wireless Microphone Systems
- Type: Handhelds
- Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
- Weight: 5,8 kg
-
Items in this set
- LD Systems U508 MD Dynamic handheld microphone
- Product type: Wireless Microphone System Accessories
- Type: Microphones
- Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
- Channels: 96 (8 groups of 12 channels)
- Groups: 8
- Microphone type: Dynamic
- Directivity: Cardioid
- Frequency response: 60 - 16,000
- Signal-to-noise ratio: >95 dB
- Rated HF output power: Variable (2mW, 10mW, 30mW)
- Controls: arrow keys (up/down value entry), menu, Power On/Off, select
- Indicators: OLED Display
- Operating voltage: 2 x AA battery
- Operating time: >10 h (with alkaline batteries)
- Length: 257 mm
- Weight: 0,25 kg
- Other features: interchangeable capsule, IR frequency synchronisation, Pilot tone squelch, switchable gain, switchable gain, switchable RF power
-
LD Systems U508 R2 Dual receiver
- Product type: Wireless Microphone System Accessories
- Accessories (included): 2 x antenna, AType: Receivers
- Transmission frequency range: 823 - 832 MHz, 863 - 865 MHz
- Modulation Type: FM
- Channels: 2 x 96 (8 groups of 12 channels)
- Groups: 8
- Antenna inputs: 2
- Antenna connector: BNC
- Frequency response: 30 - 16000
- Signal-to-noise ratio: > 100 dB
- Noise reduction: Squelch
- Total Harmonic Distortion (THD): < 0.1 %
- Controls: 2 x volume, Down, Power On/Off, Up, volume
- Audio output, balanced: 2 x XLR
- Audio output, unbalanced: 2 x 6.3 mm TS
- Indicators: 2 x OLED Display
- Audio mix output, balanced: XLR
- Audio mix output, unbalanced: 2 x 6.3 mm TS
- Max. output level: +10 dBu
- Headphones ouput: 1
- Headphones outputs: 6.3 mm TRS
- Weight: 2,24 kg
- Other features: channel search function, IR frequency synchronisation, Pilot tone
- Operating voltage: 12 V DC, 1000 mA
- Width: 484 mm
- Height: 44 mm
- Depth: 200 mmudio cable, power adapter, Rack kit
1 Year Warranty
