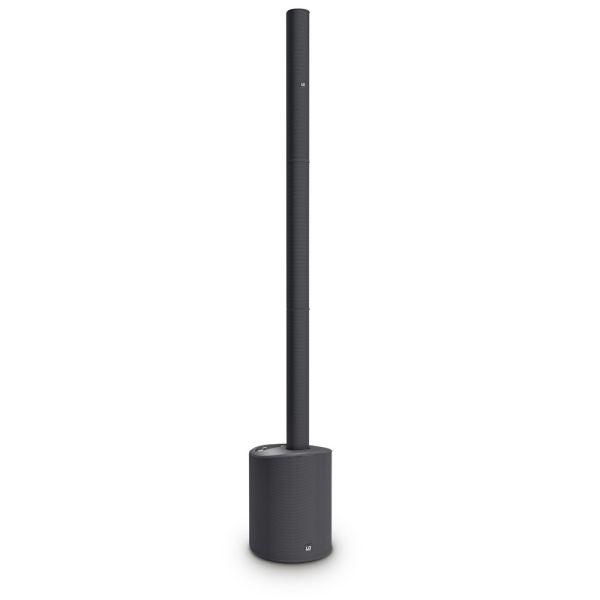

The MAUI 5 is an ultra-compact PA and monitor system in one that comes in at just under 11 kg to supply 800 watts peak performance and a maximum sound pressure of 120 dB. The smallest member of the MAUI family is assembled in a matter of seconds thanks to specially developed multi-pin connectors and only four components. It also boasts extensive sound dispersion and high feedback resistance. The MAUI 5 is easy to carry and fits on any car seat.

The bass reflex cabinet of the 8" subwoofer base also houses the system’s class-D amplifier unit with protection circuits against overcurrent, overheating and short-circuiting, LD Systems LECC digital signal processing, and a 4-channel mixer. Thanks to built-in Bluetooth© technology for wireless streaming alongside use of the microphone, line and high-impedance inputs, a wide variety of sound sources can be connected to the MAUI 5, including playback devices and instruments, such as keyboards or guitars. Separate level controllers, subwoofer and system volume controllers, and a high-shelf filter for adjusting treble to room acoustics ensure perfectly tuned performances.

Ultra-compact column PA
PA and Monitor System in one
800 watts peak power
Extensive and wide sound dispersion
LECC digital signal processing for controlled, dynamic operation
Integrated 4-channel mixer with Bluetooth
Wide range of connection options
Wireless assembly within seconds
Extremely easy to transport

General

Weight: 11,3 kg
Product type: PA Complete Systems
Color: Black
Max. SPL (continuous): 114 dB
Max. SPL (Peak): 120 dB
Frequency response: 50 - 20000
Dispersion (H x V): 120° x 20 °
Overall height: 1985 mm
Other features: 4 channel mixer, Bluetooth, DSP-based signal processing

Woofer characteristics

Low/mid Woofer dimensions: 8 "
Woofer dimensions (mm): 203.2 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2 "
Woofer voice coil (mm): 50.8 mm
Cabinet construction: Bass Reflex
Cabinet material: ABS plastic
Subwoofer width: 305 mm
Subwoofer height: 405 mm
Subwoofer depth: 395 mm

Mid/Hi System

Midrange dimensions: 4 x 3 "
Midrange dimensions (mm): 4 x 76.2 mm
Midrange magnet: Neodymium
Midrange brand: Custom-made
Midrange voice coil: 1 "
Midrange voice coil: 25.4 mm
Mid/Hi system impedance: 4 Ohm(s)
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: ABS plastic
Mid/Hi system width: 82 mm
Mid/Hi system height: 535 mm
Mid/Hi system depth: 105 mm

Amplifier module (integrated in subwoofer)

Amplifier: Class D
Amplifier output system (RMS): 200 W
Amplifier output system (peak): 800 W
Protection circuits: DSP-based multiband limiter, over-current, short circuit, thermal overload
Cooling: Convection
Controls: BT level, BT pairing, limiter, Line level, Main level, Mic level, MP3 / Hi-Z level, On, Protect (protection circuit engaged), Signal, Sub level
Indicators: Limit, On, Protect (protection circuit engaged), Signal
Operating voltage: Switching power supply
Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)
Line inputs: 2 x stereo
Line input connectors: 6.3 mm jack, XLR
Mic inputs: 1
Mic inputs: 6.3 mm jack, XLR
MP3 inputs: 1
MP3 input connectors: 3.5 mm jack
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm jack
Loudspeaker outputs: 1
Speaker output connections: Custom-made multipin

DSP characteristics

Bit depth AD/DA converter: 24 / 24 bit
Internal sampling frequency: 48 kHz

1 Year Warranty
