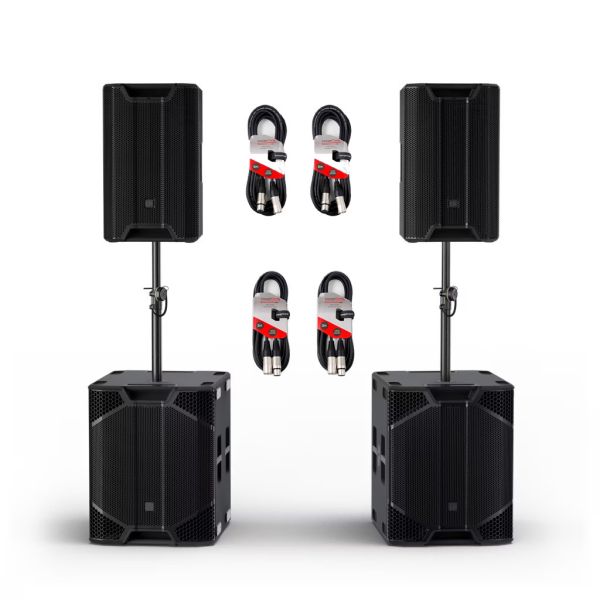

LD Systems ICOA® PRO 12 A & PRO SUB 21 A Package

LD Systems ICOA? PRO 12 A

The ICOA PRO 12 A combines the sonic precision of a true coaxial system with the flexibility of a compact 12ʺ loudspeaker. Its professional full-range performance and robust design make it exceptionally versatile and ideal for a wide range of applications, from club gigs to live events and permanent installations.

The coaxial design combines a specially manufactured 12ʺ woofer with a 3ʺ voice coil and 3ʺ titanium tweeter to create an authentic point source. The common motor design used also ensures the audio signal's improved coherence and time accuracy. The result is a particularly natural and detailed playback.

The rotatable, BEM-optimised horn ensures precise dispersion characteristics and simultaneously provides horn loading for the woofer and tweeter. This double horn loading allows the sound waves to be precisely focused deep into the mid-range (approx. 600 Hz) and offers a decisive advantage in acoustically demanding environments, as the sound energy arrives exactly where it is needed.

Thanks to its flow-optimised bass reflex ports, the ICOA PRO 12 A delivers a solid low end up to 53 Hz and thus an impressive full-range experience. The powerful Class D amplifier delivers up to 1000 W RMS (2000 W peak) and 133 dB max. SPL, ensuring sufficient headroom when powerful, distortion-free sound is required.

The modern SysCore DSP with FIR/IIR filters and advanced limiters guarantees distortion-free sound and safe operation with maximum clarity and punch – even at the limits.

Two line/mic input channels and an XLR mix tap enable various signal sources to be connected and forwarded.

Four application presets (including a low-latency monitor), delay function, and parametric 4-band EQs for the input and master channels enable precise settings.

The whole experience is rounded off by an intuitive menu navigated using the colour display with one-knob control and the free ICOA PRO app.

All settings can be adjusted quickly and wirelessly via the app, and multiple speakers can be paired with each other. A stereo setup with up to two tops and four subs, including direct music streaming via Bluetooth 5.1 and TWS, can be created and ready for use in the app in just a few seconds. A status LED on the front of the subwoofer enables easy identification and indicates if the limiter is activated.

Its robust ABS cabinet with steel reinforcement, sturdy front grille and 50° tilt angle make the ICOA PRO 12 A an excellent floor monitor. Four ergonomic carrying handles also ensure a secure grip while setting up and dismantling.

When used with a tripod, a tilt angle of 0° or 5° can be selected. Whether vertical or horizontal, the rotatable horn and the multiple mounting options, such as 6 × M10 flying points and the EasyMount truss mount, mean the loudspeaker can be used flexibly in a wide variety of environments.

This makes the ICOA PRO 12 A the perfect choice as a versatile tool for all event and installation applications.

Padded, water-repellent custom-fit protective covers with additional storage space are available as accessories for safe use and transport.

---

LD Systems ICOA? PRO SUB 21 A

The ICOA PRO SUB 21 A combines massive bass performance with a clever and roadworthy design. The 3 kW 21ʺ high-performance subwoofer with bass reflex design delivers a massive, precise and powerful bass range with its specially developed 21ʺ neodymium woofer − ideal for mobile DJs, clubs, live events, festivals and permanent installations.

The centrepiece of the ICOA PRO SUB 21 A is its extremely powerful 21ʺ woofer with a 4.5ʺ neodymium motor. Thanks to its long-throw design and precisely tuned suspension, this subwoofer delivers an unexpectedly tight, dry and precise low bass.

The powerful Class D power amplifier delivers up to 1500 W RMS (3000 W peak) and 136 dB max. SPL, providing enormous reserves and reliable low bass performance. Four extra-large, flow-optimised bass reflex ports ensure a rich low end down to 29 Hz.

The modern SysCore DSP with FIR/IIR filters and advanced limiters guarantees distortion-free sound and safe operation, even at very high volumes.

With 4-band PEQ, delay function (up to 50 m) and three selectable crossover frequencies (80 Hz, 100 Hz, and 120 Hz), the subwoofer can be flexibly adapted to different setups. Preconfigured presets are already available for low-latency monitoring and cardioid applications.

The intuitive menu is navigated using the colour display with one-knob control or the free ICOA PRO app (iOS/Android). All settings can be adjusted quickly and wirelessly via the app, and multiple speakers can be paired with each other. A stereo setup with up to two tops and four subs, including direct music streaming via Bluetooth 5.1 and TWS, can be created and ready for use in the app in just a few seconds. A status LED on the front of the subwoofer enables easy identification and indicates if the limiter is activated.

Two XLR inputs, two XLR outputs and a powerCON Loop-Thru connection enable uncomplicated system cabling and flexible expansions.

Thanks to the integrated stacking recesses and two M20 flanges, the subwoofer can be safely stacked horizontally or vertically and flexibly built into any setup.

The 15−18 mm birch plywood cabinet has been deliberately kept compact and has similar dimensions to an 18ʺ model. With a width of just 562 mm, the subwoofer fits perfectly into standard vans (Mercedes Sprinter, Fiat Ducato, Ford Transit and VW Crafter) as part of typical transport solutions (Sprinter case/TRANSflex next to subwoofer).

This space-saving design, combined with a robust polyurea coating, makes the ICOA PRO SUB 21 A the ideal choice for touring and installation applications.

Eight ergonomic carrying handles provide a secure grip on all sides and facilitate setup and dismantling. The optional ICOA PRO SUB CB castor board makes long-distance transport considerably easier.

The ICOA PRO SUB 21 A sets new standards with its compact design, powerful low bass performance and state-of-the-art SysCore® DSP. With its impressive "headlining punch", it is the perfect tool for demanding, professional applications such as live events, club installations and mobile DJ setups.

---

Gravity SP 2332 B Adjustable Speaker Pole M20 - 35mm 1.4m

The SP 2332 B is a 35 mm pole to mount satellite speakers on subwoofers. The heavy duty construction of powder coated steel is height adjustable from 82 to 140 cm. The SP 2332 B features an M20 bottom end and steel collar with set screw and safety pin to lock the extension pole in place. It comes with a convenient rubber retainer to secure the safety pin during transport.

---

StageCore CORE350LU3-BK Male XLR - Female XLR 3M

Female XLR Connector - Male XLR Connector, Professional Audio Cable - Includes Hook & Loop Tie

---

StageCore CORE350LU6-BK Male XLR - Female XLR 6M

Female XLR Connector - Male XLR Connector, Professional Audio Cable - Includes Hook & Loop Tie
