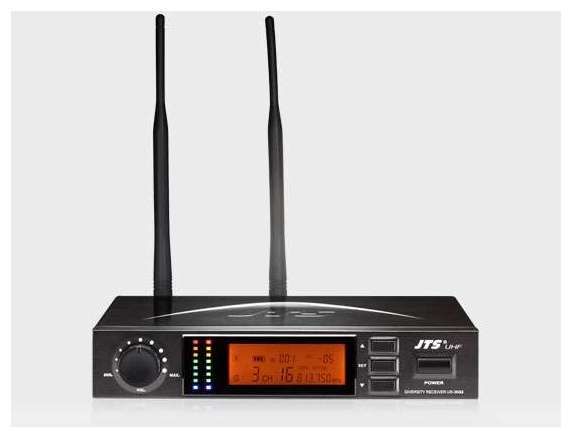

JTS US-36G2 Single UHF Microphone System
US-36G2 / Mh-36G2 / PT-36BG2 , the 2nd generation true diversity system, is based on the
legendary US-901 wireless system US-36G2 incorporates latest wireless technology to provide
users with completely new wireless experience.
* True Diversity
* UHF 36 MHz bandwidth
* 1441 selectable channels and preset 6 groups
each of up to 23 channels
* Auto Scan function is provided
* Hi/Low transmission power selector is available
* Operation distance from 200 to 480 meters correspond to Hi and Low transmission power
Ideal for live performances and presentations.
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
S/N Ratio 105dB
T.H.D 0.6%@1KHz
Display Contents Frequency, Antenna A/B, Mute Display, LED Meter , Battery Fuel Gaugez
Controls Power On/Off, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on
Audio Output Level -12dB
Controls Power On/Off, Frequency Up/Down, Lock-on,
ID Pairing, Remoset
Audio Output Level -12dB
AF Output Impedance 600O
Squelch Pilot Tone & Noise Mute
Operation Voltage 12-18 VDC, 200mA
Output Connector 1 XLR Balanced Socket
1 Diameter6.3mm unbalanced phone jack
Dimension(m/m) 212.3mm(W) * 38.3mm(H) * 144mm(D)
