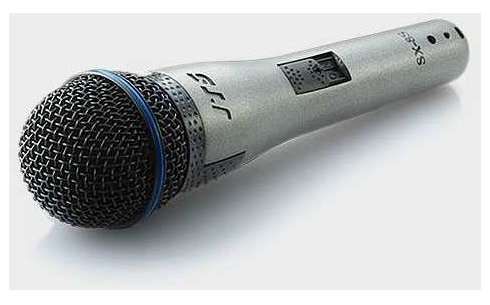

JTS SX-8S Switched Vocal Performance Microphone

SX-8/SX-8S re-enhance overall performance. SX-8/SX-8S provide extended frequency response and dynamic range for cleaner and smoother sound. Ideal for lead vocal.

Ideal for lead vocalist, band performers, radio broadcasters and karaoke.

Type Moving Coil Dynamic

Frequency Response 50~16,500 Hz

Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency

Sensitivity(at 1,000Hz) -77dB*(0.14mV)*0dB=1V/µbar

Impedance 250O

Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Connector

Three-pin professional audio connector (male XLR type)

Case Metallic enamel-painted die cast metal body with hardened, Matte-finished steel grille

SX-8S Equipped with Magnetic Reed Switch
