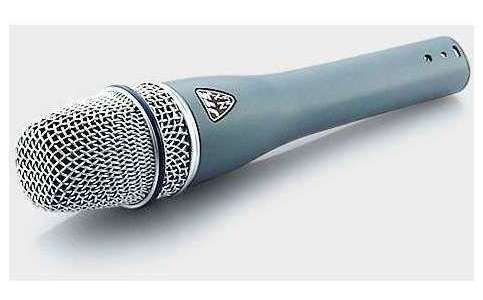

JTS NX8.8 Condenser Studio Microphone
The NX-8.8 is created for studio quality sound in live performance vocal. Smooth and tailored frequency response provide vividness, accuracy and warmth for vocal. Excellently accurate pick-up pattern provides the best gain-before-feedback. Specially designed filter effectively minimizes breath pop, stand and handling noise.
Suitable for live vocal performance, radio broadcasting, presentations and karaoke.
Type Electret Condenser
Frequency Response 60~18,000 Hz
Polar Pattern Supercardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -70dB*(0.32mV)*0dB=1V/µbar
Output Impedance 400O
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Net Weight 275 grams (10.2 oz)
Touch Noise Super low
Power Supply 9-52V phantom power
