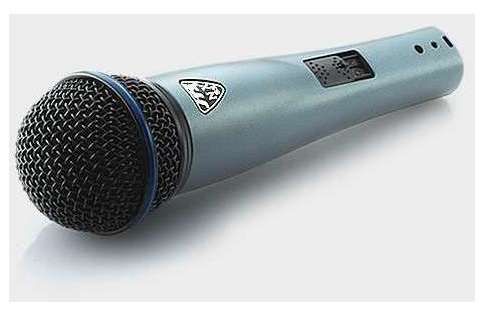

JTS NX-8S Switched Dynamic Vocal Microphone
Based on the success of X-series performance microphones NX-8/NX-8S reenhance overall performance. NX-8/NX-8S provide extended frequency response and dynamic range for cleaner and smoother sound. The shock mount keeps handling noise to extremely low level. Reinforced cartridge and hardened grille make NX-8/NX-8S one of the most rugged mics in the professional microphone industry.
The NX-8S is suitable for live vocal performances, presentations, studio recording and karaoke.
Type Moving Coil Dynamic
Frequency Response 50~16,500 Hz
Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -72dB*(0.25mV)*0dB=1V/µbar
Impedance 600O
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector
(male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Net Weight 245 grams (8.6 oz)
NX-8S Equipped with Magnetic Reed Switch
