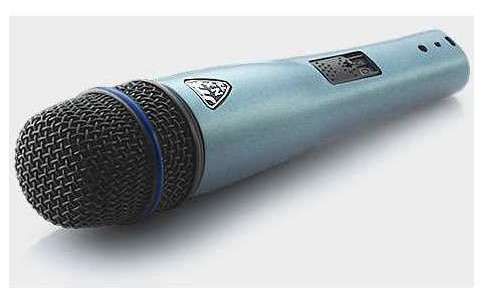

JTS NX-7S Switched Dynamic Microphone
The NX-7/NX-7S are designed for optimal warmth and clarity. The outstanding pick-up pattern and sound quality make NX-7/NX-7S ideal for vocal, drums, guitar amplifiers and other instruments. The dynamic shock mount keeps noise to a remarkable low level. The top-flat grille allows mic. cartridge closer to a sound source to maximize low frequency proximity effect.
Type Moving Coil Dynamic
Frequency Response 50~16,500 Hz
Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency
Sensitivity(at 1,000Hz) -72dB*(0.25mV)*0dB=1V/µbar
Impedance 600O
Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector Three-pin professional audio connector (male XLR type)
Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille
Net Weight 235 grams (8.3 oz)
NX-7S Equipped with Magnetic Reed Switch
