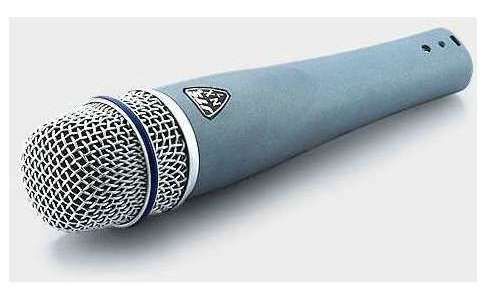

JTS NX-7 Dynamic Microphone

The NX-7/NX-7S are designed for optimal warmth and clarity. The outstanding pick-up pattern and sound quality make NX-7/NX-7S ideal for vocal,drums, guitar amplifiers and other instruments. The dynamic shock mount keeps noise to a remarkable low level. The top-flat grille allows mic. cartridge closer to a sound source to maximize low frequency proximity effect.

Ideal for live vocal performace, presentations, instrumental, radio presenting and karaoke.

Type Moving Coil Dynamic

Frequency Response 50~16,500 Hz

Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency

Sensitivity(at 1,000Hz) -72dB*(0.25mV)*0dB=1V/µbar

Impedance 600O

Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Connector Three-pin professional audio connector

(male XLR type)

Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille

Net Weight 235 grams (8.3 oz)
