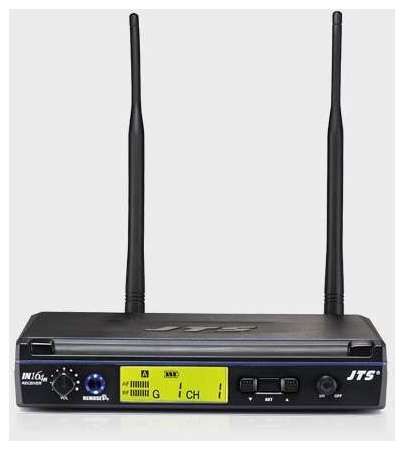

JTS IN164R Single Handheld UHF Microphone System

IN164R Single UHF Microphone system

The JTS IN SERIES UHF Diversity Wireless System features REMOSET the World's First Remote Control RF setting function that allows automatic remote control frequency settings of the Transmitter from the Receiver.

* REMOSET : Uses a RF signal to send frequency change settings from the IN SERIES receiver to the transmitter in a fraction of a second.

* 200~480 meter operation distance.

* LCD Displays: RF Level, Audio Level, Low Battery Indicator, Antenna Status, Channel Selection.

* IN164R is single channel version of IN264R.

* IN164R with band width of 36 MHz.

* Preset 6 groups, maximum 23 channels in one group.

Ideal for live performers, conferences and presentations.

Frequency Preparation PLL Synthesized Control

Remoset Radio Frequency : 2.4GHz

Effective distance: 10m

Carrier Frequency Range 36MHz within 502~960 MHz

S/N Ratio 105dB

T.H.D 0.6%@1KHz

Display LCD

Display Contents Channel, Antenna A/B, Mute Display, RF/AF Level Meter, Low battery, ID Number

Controls Power On/Off, Frequency Up/Down, Lock-on,

ID Pairing, Remoset

Audio Output Level -12dB

AF Output Impedance 600O

Squelch Pilot Tone & Noise Mute

Operation Voltage 12-18 VDC, 500mA

Output Connector 1 XLR Balanced Socket

1 Diameter6.3mm unbalanced phone jack

Dimension(m/m) 210mm(W) * 40mm(H) * 165.5mm(D)
