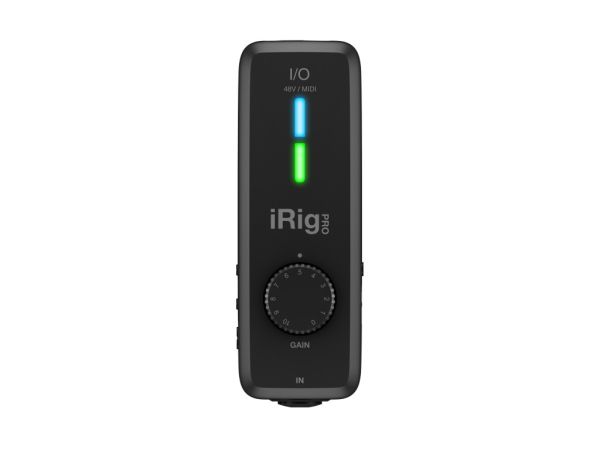

The ultra-compact professional audio/MIDI interface for all your gear

Now record with any of your gear on the go, and monitor in real time with any compatible device!

That’s iRig Pro I/O, the ultra-compact professional quality audio and MIDI in/out for your mobile recording life!

iRig Pro I/O is the next generation of the iRig Pro — the first mobile interface for connecting all of your studio gear to your iPhone, iPad, Mac, PC or Android device to play and record on the go.

iRig Pro I/O is a pocket-sized full-featured audio and MIDI interface that gives you 24-bit/96kHz recording studio quality sound everywhere you go with a few additional essential features for mobile recording.

Package includes

iRig Pro I/O universal Audio-MIDI interface
Lightning to Mini-DIN connection cable with charging features (60cm/23.62")
USB-A to Mini-DIN connection cable (60cm/23.62")
USB-C to Mini-DIN connection cable (60cm/23.62")
2.5mm TRS male to MIDI female adapter (10cm / 3.9")
2 x 1.5V AA Battery
Velcro strip

Compatibility

iOS Devices
Made for: iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 4th generation.

Also compatible with all newer iPhone, iPad and iPod touch models.

Computers
Mac®: Mac OS X 10.6 or later. One free USB port.
Windows®: One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed.

Android Devices
Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.
Micro-USB-OTG to Mini-DIN cable (sold separately) is required.

Use only the specified AC adaptor
Use only the specified AC adaptor (iRig PSU 3A) and make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. IK Multimedia will not be responsible of any damage caused by usage of any AC adaptor other than the specified one (iRig PSU 3A). The usage of AC adaptors other than the specified one (iRig PSU 3A) could compromise the user experience in terms of: Safety risk, Apple device charging performances, Noise performances.

Microphone Input

Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Microphone Input Level: from 6 mVpp to 1.4 Vpp
Microphone Input Impedance: 3.2 kOhms
Gain Range: 40 dB
Phantom Power: +48V ± 4V
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Input Noise: -103 dB(A), -97 dB RMS

Instrument Input

Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
Instrument Input Level: from 30 mVpp to 6.9 Vpp
Instrument Input Impedance: 1 MOhms
Gain Range: 27 dB
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Input Noise: -103 dB(A), -97 dB RMS

Stereo Headphone Output

Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
Headphone Level Control numbered thumbwheel
Headphone Level Power 100mW into 50 Ohms

Stereo Headphone Output

Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
Headphone Level Power 100mW into 50 Ohms

MIDI Input/Output

Connector: 2x2.5mm TS Jack

Other Input/Output

DC barrel: 1x DC barrel. For power and device charging.
Device Connector: mini-DIN

Common

Conversion: 24-bit A/D, 24-bit D/A
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
Power:
- USB bus powered when used with a computer
- Battery powered (2xAA included) when used with an iOS device
- DC power supply (not included, iRig PSU 3A sold separately)*

Package includes

iRig Pro I/O universal Audio-MIDI interface
Lightning to Mini-DIN connection cable with charging features (60cm/23.62")
USB-A to Mini-DIN connection cable (60cm/23.62")
USB-C to Mini-DIN connection cable (60cm/23.62")
2.5mm TRS male to MIDI female adapter (10cm / 3.9")
2 x 1.5V AA Battery
Velcro strip

Dimensions

Size: 43mm/1.69" x 127mm/5" x 37mm/1.46"
Weight: ~120g/4.23oz (batteries excluded)

1 Year Warranty
