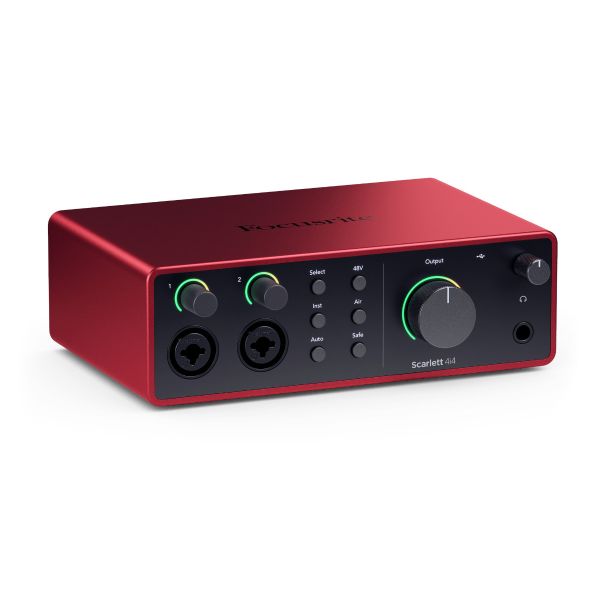

Scarlett 4i4 is the complete compact studio hub for all your instruments. Perfect for multi-instrumentalists and collaborators, 4i4 is loaded with I/O for everything. Two of our most detailed ultra-low-noise mic preamps. Hi-Z, line and MIDI connections for your keys, guitars, synths, grooveboxes and controllers. With 4i4 your headphones, monitors, and line outs each get their own mix, so you can match the studio setup to the session.

Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. Auto Gain and Clip Safe make sure you'll never need to worry about your levels. And the Hitmaker Expansion software bundle includes all the tools you need to record, produce and release your tracks.

Overview

Number of Microphone Preamps: 2
Phantom Power: Yes
Instrument Inputs: 2
Line Inputs: 4
Air Mode: Yes
Auto Gain: Yes
Clip Safe: Yes
Line Outputs: 4
Headphone Outputs: 1
Loopback: Yes
MIDI: Yes
Connectivity: USB Type-C
Protocol: USB 2.0
Form Factor: Desktop
Simultaneous I/O: 6 x 6 (including Loopback inputs)
A/D Resolution: 24-bit/192 kHz
Bus Powered: Yes (1.5A)

Supported sample rates

44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone inputs

Frequency Response: 20-20kHz ± 0.06dB
Dynamic Range: 116dB (A-Weighted)
THD+N: -100dB @ minimum gain
Noise EIN: -127dBu (A-Weighted)
Maximum Input Level: 16dBu
Gain Range: 69dB
Impedance: 3kΩ

Variable Line inputs

Frequency Response: 20-20kHz ± 0.05dB
Dynamic Range: 115.5dB (A-Weighted)
THD+N: -100dB @ 8dB gain
Maximum Input Level: 22dBu
Gain Range: 69dB
Impedance: 60kΩ

Fixed Line inputs

Frequency Response: 20-20kHz ± 0.02dB
Dynamic Range: 115.5dB (A-Weighted)
THD+N: -105dB
Maximum Input Level: 22dBu
Impedance: 60kΩ

Instrument inputs

Frequency Response: 20-20kHz ± 0.15dB
Dynamic Range: 113dB (A-Weighted)
THD+N: -80dB @ minimum gain
Maximum Input Level: 12dBu
Gain Range: 62dB
Impedance: 1MΩ

Line outputs (Balanced)

Frequency Response: 20-20kHz ± 0.02dB
Dynamic Range: 120dB
THD+N: -112dB
Maximum Output Level: 16dBu
Impedance: 100Ω

Headphone outputs

Frequency Response: 20-20kHz ± 0.1dB @ 33Ω / 300Ω
Dynamic Range: 112dB @ 33Ω, 115dB @ 300Ω
THD+N: -99dB @ 33Ω, -108dB @ 300Ω
Maximum Output Level: 5dBu into 33Ω, 11dBu into 300Ω
Maximum Output Power: 57mW into 33Ω, 27mW into 300Ω
Impedance: 11Ω

Analogue to Digital Converter

THD+N: -110dB
Dynamic Range: 120dB

Digital to Analogue Converter

THD+N: -115dB
Dynamic Range: 130dB (A-Weighted)

Power

USB: 1.5A
External (Optional): 7.5W

Height: 60mm
Width: 180mm
Depth: 130mm
Weight: 0.798kg

1 Year Warranty
