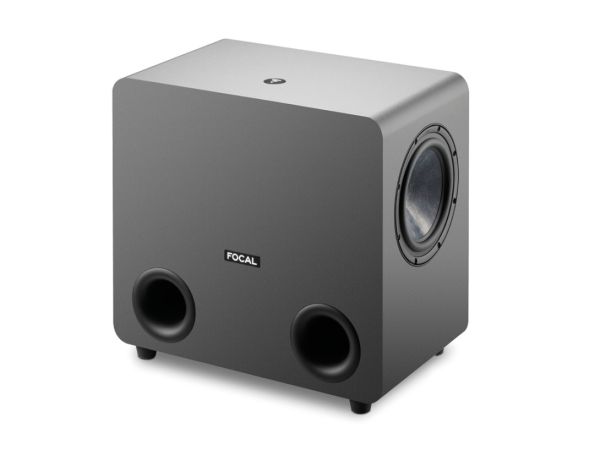

Sub One
Active professional subwoofer

This long-excursion active subwoofer offers high efficiency for the most demanding professionals and sound engineers. Rated at 200W RMS, Sub One is ideal for use with the Alpha Evo line, as well as the Shape line of monitors.

DISCREET AND VERSATILE
For discreet, optimal studio integration, Sub One features a slim, space-saving profile. Added features include low-pass crossover, high-pass crossover for monitor output, sound level, footswitch input/output for bass-management bypass, LFE input/output, left and right inputs/outputs.

PERFORMANCE
The 20 cm (8") Slatefiber double-skin woofers offer neutrality, precision and sonic dynamics with low distortion. With a total power output of 200W RMS, Sub One covers a frequency range from 32 Hz to 120 Hz.

DESIGN
Thanks to its elaborate full-width design and front-mounted air vents, this professional subwoofer fits discreetly and easily into a room along a wall or under a desk.

Left + right mono summation
60Hz / 90Hz high-pass crossover
Adjustable low-pass crossover, 24dB/octave
Phase adjustment
Polarity switch
Subwoofer level adjustment (sensitivity)
Low-pass crossover cut-off frequency adjustment
Polarity inverter
Pedal-controlled mute (sold separately)

Product type: Monitoring grave box
Loudspeakers: 2 x 8" Slatefiber membrane
Frequency response (+/- 3dB): 32 Hz - 120 Hz
Maximum SPL (peak@1m): 114 dB

Inputs:
- Left, Right,LFE
- XLR: symmetrical 10 kOhms
- Variable
Mid-range and low frequency amplifier: 100 W, class D
Indicators and controls:
- Sub level (sensitivity) adjustment
- Lo-passe frequency adjustment
- Phase adjustment
- Polarity switch
- Mute
- 2.1 bypass (controlled by external footswitch)
- Hi-pass frequency selection
- Hi-pass defeat

Depth: 52 cm / 20.5 in
Height: 47.5 cm / 18.7 in
Width: 31 cm / 12.2 in
Weight: 18.5 kg / 40.8 lb

1 Year Warranty
