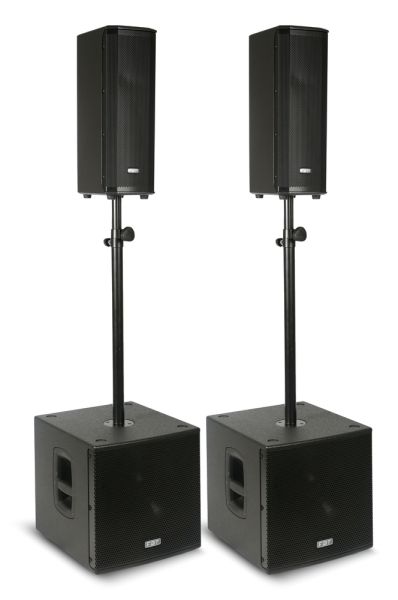

FBT VN2000 System Ventis 206A & 2x Subline 112SA Active PA Package
FBT Ventis 206A 900W Active Speaker - Black
FBT VENTIS 206A Processed Active Speaker 700W + 200W RMS - 131dB SPLThe VENTIS 206A has been designed to meet the highest standards in both performance and aesthetic appeal. Based on a powerful combination of B&C compression drivers and FBT's own custom, long excursion
woofers, the 206A features a full-grille design backed by specially treated acoustic cloth which delivers the characteristic style for which FBT is known.
The multi-purpose VENTIS 206A can be deployed as a front fill, an under-balcony fill, as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer. Constructed in 12mm birch
plywood, the 206A has an integrated rear handle, an optional mounting bracket and, most importantly, an astonishing size to SPL ratio.
Power for the active 206A VENTIS model comes courtesy of a specially designed, Italian made switching mode amplifier module. Low frequencies are driven by a highly efficient 700W RMS (full bridge)
Class-D topology, operating with extremely low THD. For the HF stage, a 200W RMS performance is delivered via a meticulously crafted Class-H / AB design.
Finally, DSP on-board the VENTIS 206A enclosure is both user friendly and powerful. Located on the rear of the speaker, a menu-driven system is navigated via a single rotary control with push-to-select functionality.
A total of 6 pre-optimised settings are available (see below), plus 2 further slots for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid
and high tone settings and an optional delay of between 0 and 3.5 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance.
FBT SUBline 112SA Processed Active Subwoofer - Black
Designed and manufactured in Italy, the SUBline range of bass reflex subwoofers delivers more power from smaller, more portable enclosures, with Class D amplification, switch-mode power supplies and DSP presets for accompanying full range enclosures.
Encompassing two passive and four active models, SUBline boasts road-ready, tour-grade birch plywood construction, integrated carrying handles and optional wheels, plus in/out stereo connectors facilitating the use of a single sub in left-right stereo set-ups.
Ultimax MSA-220BK Adjustable Speaker Pole With M20 Thread
The StageCore MSA220 Speaker Pole with M20 Thread is a dependable and adaptable solution for mounting your speakers in a professional audio environment.
Its rugged construction, height adjustability, and compatibility with a wide range of speakers make it an excellent choice for musicians, DJs, and audio engineers seeking reliable support for their valuable sound equipment.
With this speaker pole, you can elevate your sound and ensure a stable and secure setup at every performance.
StageCore CORE350LU3-BK Male XLR - Female XLR 3M
Female XLR Connector - Male XLR Connector, Professional Audio Cable - Includes Hook & Loop TieStageCore CORE350LU6-BK Male XLR - Female XLR 6M
Female XLR Connector - Male XLR Connector, Professional Audio Cable - Includes Hook & Loop TieFBT SL-C 112 SUBline 112 Cover
FBT SL-C 112 Subline 112 Speaker CoverFBT VN-C 206 Ventis 206 Speaker Cover
Soft interior padding protected by a hard-wearing wipeable nylon exterior makes the VN-C 206 a practical for slip-on protection for the VENTIS 206/206A. Also features an integrated handle slot at the rear for access to the carry handle on the VENTIS 206/206A.FBT SUBline 112SA Processed Active Subwoofer - Black
Bass-reflex design with high SPL and punch
320mm (12'') high excursion magnet woofer with 75mm (3'') voice coil
Frequency response from 40Hz to 140Hz
New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration
Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
15 mm (0.59'') birch plywood scratch resistant enclosure with internal bracing
M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
Ultimax MSA-220BK Adjustable Speaker Pole With M20 Thread
High-Quality Construction:The StageCore MSA220 Speaker Pole is constructed with precision and durability in mind. It is made from robust materials that can withstand the rigours of the road and the demands of frequent use.
M20 Thread:
The speaker pole features an M20 thread at the bottom, which is a widely accepted industry standard for mounting loudspeakers. This thread ensures a secure and stable connection between the pole and your speaker, minimising the risk of wobbling or accidental disconnection during performances.
Adjustable Height:
This speaker pole is designed with height adjustability in mind. You can easily extend or retract the pole to achieve the desired speaker placement. Whether you need to raise your speaker to reach a larger audience or keep it at ear level for a more intimate setting, this pole provides flexibility.
Safe Load Capacity:
The StageCore MSA220 Speaker Pole is engineered to support a substantial load capacity. It can securely hold heavy loudspeakers, making it suitable for a wide range of speakers used in professional audio setups.
Easy to Transport:
The compact and lightweight design of this speaker pole makes it easy to transport to gigs, concerts, or events. It won't add unnecessary bulk to your equipment loadout.
Non-Slip Design:
To ensure stability during use, the speaker pole features a non-slip surface. This prevents your speaker from shifting or sliding during performances, keeping your setup safe and reliable.
Compatibility:
The M20 thread on the StageCore MSA220 Speaker Pole is compatible with a variety of professional loudspeakers and subwoofers, making it a versatile choice for audio professionals.
Professional Appearance:
The sleek and professional design of this speaker pole complements the aesthetics of your audio setup, giving your performance area a polished and organised look.
FBT VN-C 206 Ventis 206 Speaker Cover
Made from hard wearing wipeable nylon, this soft lined padded cover will protect the VENTIS 206 while on the road.FBT SUBline 112SA Processed Active Subwoofer - Black
Configuration: Subwoofer
Built-in amplifier LF/HF: 700w
Built-in amplifier peak LF/HF: 1400w
Frequency response: 40Hz - 140Hz
Low Frequency woofer: 12" (3" VC)
Maximum SPL cont/peak: 130/133dB SPL
Dispersion: Omnidirectional
Input connector: Stereo XLR In/Out (High Pass/Link Out)
Power cord: 5m IEC
Net Dimension (WxHxD): 430 x 447 x 480mm
Net Weight: 23 kg
StageCore CORE350LU3-BK Male XLR - Female XLR 3M
- Connector A Female XLR
- Connector B Male XLR
- Length 3m
- Colour Black
StageCore CORE350LU6-BK Male XLR - Female XLR 6M
- Connector A Female XLR
- Connector B Male XLR
- Length 6m
- Colour Black
