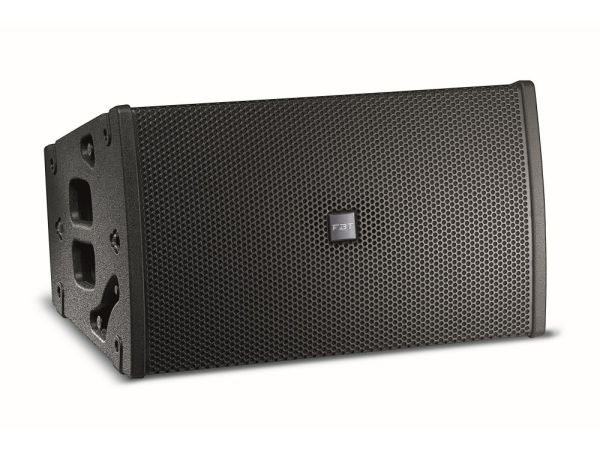

FBT VHA 406A Vertical Horizontal Active Line Array
SKU
135739
£2,540.00
In stock
The FBT VHA 406A is a cutting-edge Vertical Horizontal Active Line Array speaker system. Combining precision engineering with advanced technology, it delivers unparalleled sound quality and coverage for large venues and events. With its versatile design, high output, and seamless integration, it ensures an immersive audio experience that captivates audiences worldwide.
- Buy 2 for £2,530.00 each and save 0%
Categories: Active Speaker Packages, Active Speakers
Experience unmatched audio performance with the FBT VHA 406A Vertical Horizontal Active Line Array speaker system. Engineered to perfection, this advanced technology marvel delivers pristine sound quality and extensive coverage for large venues and events. Its versatile design and high output ensure a seamless integration, providing an immersive audio experience that captivates audiences worldwide. Elevate your sound game with FBT VHA 406A, the ultimate choice for exceptional live sound reinforcement.
- Bi-amplified 2-way line array
- 4 x 165mm (6.5 ") custom woofers with 38mm (1.5") coil
- Neodymium B&C compression HF driver with 36mm (1.4") spout and 64mm (2.5") coil
- Large format FBT waveguide with 90° (H) x 20° (V) dispersion
- Frequency response from 65Hz to 20KHz
- Class-D 600Wrms for LF and 300Wrms for HF amplifiers with switch mode power supply
- DSP processor with 8 equalization presets
- Control panel with XLR input and link, volume, presets, filter-HP, ground-lift
- Neutrik PowerCON TRUE1 IN and LINK power connectors
- Cabinet in 12mm (0.5") birch plywood with anti-scratch varnish. Handles with rubber inserts and rubber-coated sides to protect the cabinet from bumps and scratches.
- Side suspension hardware with integrated setting pins, inclination between adjacent cabinets from 5° to 20° in 5° steps. Possibility of vertical and horizontal installation through dedicated flybars.
- Wide range of accessories for suspension, pole-mounting or ground-stacking.
- Ideal for both live applications, assisted by one or both subs of the VHA range, and for fixed installations
Configuration: 2 Way
Frequency response: 65Hz - 20kHz -6dB
Low frequency woofer: 4x 6.5" (1.5" VC)
High frequency driver: 1x 1.4" (2.5" VC)
Maximum SPL cont/peak: 128/133dB
Dispersion: 90 x 20 (H x V)
Input impedance: 22kOhm
Crossover frequency: 1.2kHz
Input connector: XLR with link out
Net Dimension (WxHxD): 612 x 360 x 397mm
Net Weight: 29kg
Transport Dimension (WxHxD): 695 x 440 x 475mm
Transport Weight: 33kg
AC Power requirements: 640VA
Built-in amplifier LF/HF: 600/300w
Built-in amplifier peak LF/HF: 1200/600w
Power cord: 5m
1 Year Warranty
