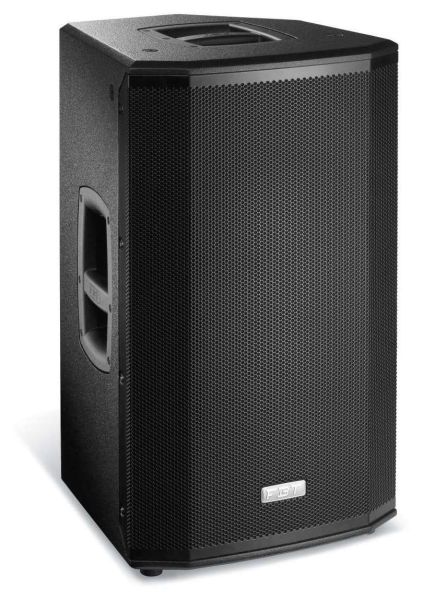

FBT Ventis 112A 900W Active Speaker
12" Processed Active Speaker 700W + 200W RMS – 133DB SPL
- Buy 2 for £1,049.50 each and save 1%
FBT VENTIS 112A - Processed Active Speaker 700W +200W RMS - 133dB SPL
Based on a powerful combination of B&C compression drivers and FBT's own custom, long excursion woofers, the Ventis 112A is a two-way, bass reflex design housed in 15mm birch plywood.
A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.
The FBT Ventis 112A active speaker is suitable for fixed installation as it has been designed for use on the stage. M10 points are included as standard while an optional U-bracket can be used for wall-mounting.
For use on the road, the VENTIS 112A includes aluminum handles with rubber inserts, a 35mm polemount socket, and a 45° sloped profile for unobtrusive placement on-stage as a monitor.
Power for the active VENTIS 112A model comes courtesy of a specially designed, Italian made switching mode amplifier module. Low frequencies are driven by a highly efficient 700W RMS (full bridge) Class-D
topology, operating with extremely low THD. For the HF stage, a 200W RMS performance is delivered via a meticulously crafted Class-H / AB design.
Finally, DSP on-board the VENTIS 112A enclosure is both user friendly and powerful. Located on the rear of the speaker, a menu-driven system is navigated via a single rotary control with push-to-select functionality.
A total of 6 pre-optimised settings are available, plus 2 further slots for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone
settings and an optional delay of between 0 and 3.5 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance.
- 2-way, bi-amplified, bass reflex design
- Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
- Digital Signal Processor with graphic display
- 15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
- High efficiency switch mode power supply
- Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
- 320mm (12”) LF woofer with 64mm (2.5”) voice coil, custom made for FBT
- 25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
- Frequency response from 48Hz to 20 kHz
- 80°H x 50°V Constant Directivity Rotatable Horn
- 6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8”) top-hat
- Speaker stand socket, two aluminium handles
- 45° monitor taper
- Adjustable delay between 0 - 10m
Code: 40641
Power cord: 5m
Net Dimension (WxHxD): 387 x 665 x 380mm
Net Weight: 20.6kg
Transport Dimension (WxHxD): 500 x 765 x 470mm
Transport Weight: 23.1kg
Configuration: 2 Way
Built in amplifier: 900w (700w LF + 200w HF)
Built in amplifier peak: 1800w (1400w LF + 400w HF)
Frequency Response: 42Hz - 20kHz -6dB
Low Frequency Woofer: 12
High Frequency driver: 1
Maximum SPL continuous/peak: 126/133dB
Dispersion (HxV): 80 x 50 degree rotatable
Input Impedance: 22kOhm
AC power requirements: 640VA
Input Connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
