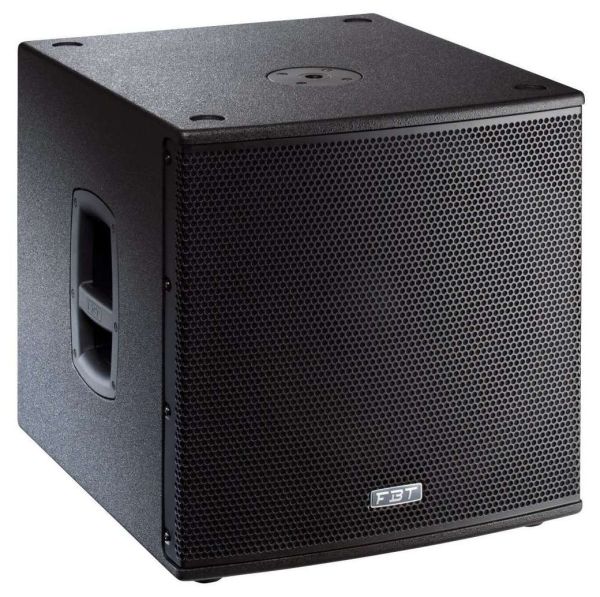

FBT Subline 115SA Active Subwoofer
Processed Bass Reflex Active Subwoofer - 15" - 700Watts RMS
- Buy 2 for £1,022.50 each and save 0%
The SUBline 115SA series has been completely redesigned created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.
The 115SA Active Subwoofer features a bass-reflex design , built in birch plywood and aimed to extend the low frequency response to a wide range of FBT speaker systems.
With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers
Optional wheels, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport
Bass-reflex design with high SPL and punch
380mm (15”) high excursion magnet woofer with 75mm (3”) voice coil
Frequency response from 40Hz to 140Hz
New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration
Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
Configuration: Subwoofer
Built-in amplifier LF/HF: 700w
Built-in amplifier peak LF/HF: 1400w
Frequency response: 40Hz - 140Hz
Low Frequency woofer: 15" (3" VC)
Maximum SPL cont/peak: 132/135dB SPL
Dispersion: Omnidirectional
Input connector: Stereo XLR In/Out (High Pass/Link Out)
Power cord: 5m IEC
Net Dimension (WxHxD): 500 x 517 x 570mm
Net Weight: 28 kg
