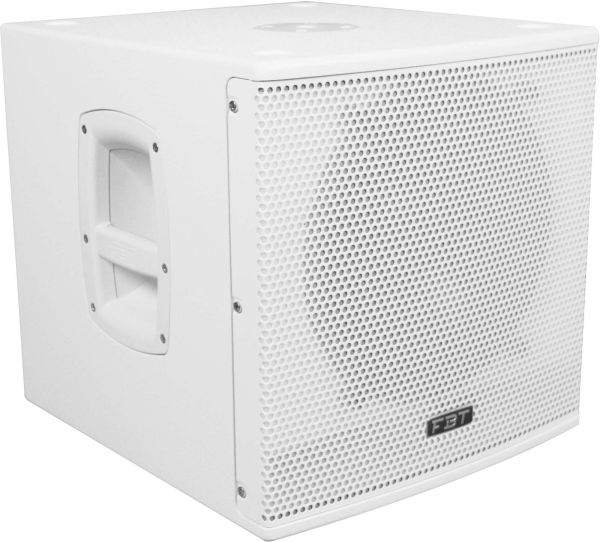

Designed and manufactured in Italy, the SUBline range of bass reflex subwoofers delivers more power from smaller, more portable enclosures, with Class D amplification, switch-mode power supplies and DSP presets for accompanying full range enclosures.

Encompassing two passive and four active models, SUBline boasts road-ready, tour-grade birch plywood construction, integrated carrying handles and optional wheels, plus in/out stereo connectors facilitating the use of a single sub in left-right stereo set-ups.

Bass-reflex design with high SPL and punch

320mm (12'') high excursion magnet woofer with 75mm (3'') voice coil

Frequency response from 40Hz to 140Hz

New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D

Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration

Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0Â°-180Â°, 3 status LED indicators

15 mm (0.59'') birch plywood scratch resistant enclosure with internal bracing

M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles

Configuration: Subwoofer
Built-in amplifier LF/HF: 700w
Built-in amplifier peak LF/HF: 1400w
Frequency response: 40Hz - 140Hz
Low Frequency woofer: 12" (3" VC)
Maximum SPL cont/peak: 130/133dB SPL
Dispersion: Omnidirectional
Input connector: Stereo XLR In/Out (High Pass/Link Out)
Power cord: 5m IEC
Net Dimension (WxHxD): 430 x 447 x 480mm
Net Weight: 23 kg

5 Year Warranty
