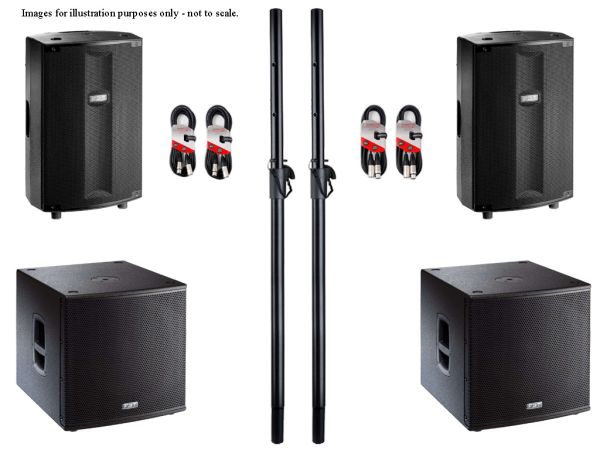

FBT ProMaxX 114A & Subline 15SA 3200W Active PA Package
High Quality Italian Built Active Sub & Mid/High Speaker Package With Poles & Leads
FBT ProMaxX 114a 900W Bass Reflex Active Speaker
FBT ProMaxX 114A 900W Active Speaker - 127/135.5dB SPLWith a specially developed polypropylene cabinet and stylish full grille aesthetic, the new PROMAXX by FBT represents the next step in the evolution of a portable sound classic.
Equipped with custom FBT speakers complete with B&C's renowned compression driver technology,PROMAXX combines true made-in-Italy quality and style. At its heart is a purpose-built FBT amplifier module with a switch-mode power supply. For the low frequency section, 700W RMS is driven via a highly efficient Class-D topology, boasting extremely low THD. For HF, meanwhile, 200W RMS is delivered by a Class-H / AB design chosen to ensure the highest definition of audio performance at high frequencies.
Also onboard is a powerful digital signal processing (DSP) platform made available to users of all levels thanks to an intuitive graphical user interface. Located on the rear of the enclosure, the menu-driven system is navigated via a single rotary control with push-to-select functionality.
Users can choose between 6 equalizer presets, each carefully designed by FBT engineers to ensure that every application is catered for. Additionally, 2 preset slots are available for users to form their own designs, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 3.5 metres. Finally, users can exclusively choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance,
The PROMAXX feature-set is matched by the enclosure's versatility, with options for pole-mounting, wall-hanging, suspension or even deployment in an array. The result is the most accessible PROMAXX yet.
FBT SUBline 115SA Processed Active Subwoofer - Black
The SUBline 115SA series has been completely redesigned created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.
The 115SA Active Subwoofer features a bass-reflex design , built in birch plywood and aimed to extend the low frequency response to a wide range of FBT speaker systems.
With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers
Optional wheels, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport
SoundSation SUBST100-M20 Threaded Subwoofer Pole
SUBST100 is a speaker stand you can screw or slot into your subwoofer and fits either a standard 35mm top hat socket or M20 threaded socket to support your satellite speaker.
Built in ultra-rugged steel, it features an adjustable height centre pole with locking safety pin.
StageCore CORE350LU6-BK Male XLR - Female XLR 6M
Female XLR Connector - Male XLR Connector, Professional Audio Cable - Includes Hook & Loop TieStageCore CORE350LU3-BK Male XLR - Female XLR 3M
Female XLR Connector - Male XLR Connector, Professional Audio Cable - Includes Hook & Loop TieFBT ProMaxX 114a 900W Bass Reflex Active Speaker
- 2-way, bi-amplified, bass reflex design cabinet
- Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
- Digital signal processor with graphic display
- Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
- 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
- 90°H x 60°V constant directivity horn
- Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
- 355mm (14") LF woofer with 64mm (2.5") voice coil, custom made for FBT
- 35mm (1.4") throat exit B&C HF magnet compression driver with 34mm (1.4”) voice coil
- Frequency response from 45Hz to 20KHz
- Sturdy, gas-injected polypropylene moulded enclosures, engineered to contain undesired resonance
- Extremely light only 17.4kg
- Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our 14” LF Woofer for lower frequency SPL
FBT SUBline 115SA Processed Active Subwoofer - Black
Bass-reflex design with high SPL and punch
380mm (15”) high excursion magnet woofer with 75mm (3”) voice coil
Frequency response from 40Hz to 140Hz
New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration
Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
SoundSation SUBST100-M20 Threaded Subwoofer Pole
Speaker stand with 35mm pole mount
Can be used with M20 threaded subwoofer socket
Built in rugged steel
Height adjustment through a screw blocking system with handle
Metal safety pin system
FBT ProMaxX 114a 900W Bass Reflex Active Speaker
Configuration: 2 Way
Built in amplifier: 900w (700w LF + 200w HF)
Built in amplifier peak: 1800w (1400w LF + 400w HF)
Frequency Response: 45Hz - 20kHz -6dB
Low Frequency Woofer: 14"
High Frequency Driver: 1.4"
Maximum SPL continuous/peak: 127/135.5dB SPL
Dispersion (HxV):
Input Impedance: 22kOhm
AC power requirements: 640VA
Input Connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
FBT SUBline 115SA Processed Active Subwoofer - Black
Configuration: Subwoofer
Built-in amplifier LF/HF: 700w
Built-in amplifier peak LF/HF: 1400w
Frequency response: 40Hz - 140Hz
Low Frequency woofer: 15" (3" VC)
Maximum SPL cont/peak: 132/135dB SPL
Dispersion: Omnidirectional
Input connector: Stereo XLR In/Out (High Pass/Link Out)
Power cord: 5m IEC
Net Dimension (WxHxD): 500 x 517 x 570mm
Net Weight: 28 kg
SoundSation SUBST100-M20 Threaded Subwoofer Pole
Height (min-max) - 800-1360 mm
Load capacity - 50 Kg
Weight - 1.4 Kg
StageCore CORE350LU6-BK Male XLR - Female XLR 6M
- Connector A Female XLR
- Connector B Male XLR
- Length 6m
- Colour Black
StageCore CORE350LU3-BK Male XLR - Female XLR 3M
- Connector A Female XLR
- Connector B Male XLR
- Length 3m
- Colour Black
