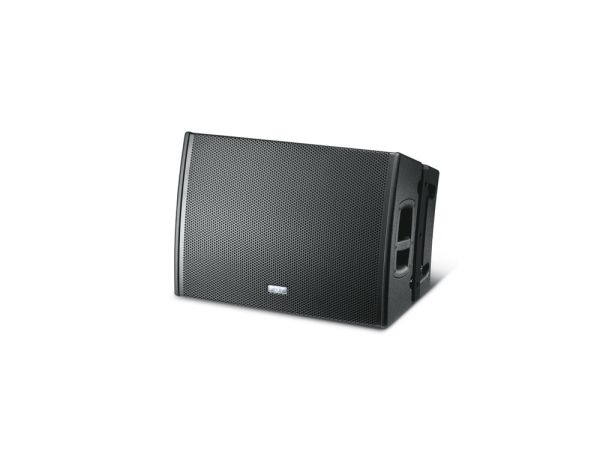

FBT Modus 4820LA
SKU
564096
£3,499.00
In stock
The FBT Modus 4820LA is a powerful and versatile line array speaker designed for exceptional audio performance. With its four 8" woofers and two 1.4" HF drivers, it delivers clear and impactful sound. Ideal for live events, music venues, and installations, this speaker ensures an immersive and dynamic audio experience in any setting.
- Buy 2 for £3,487.50 each and save 0%
Categories: Active Speakers, Active Speakers
Experience exceptional audio performance with the FBT Modus 4820LA Line Array Speaker. Boasting four 8" woofers and two 1.4" HF drivers, it delivers clear and impactful sound. Ideal for live events, music venues, and installations, this versatile speaker ensures an immersive and dynamic audio experience in any setting. Elevate your sound quality with FBT Modus 4820LA.
- 20° vertical dispersion
- 2 way powered bi-amped true line array, bass reflex design
- 4x200 mm (8") custom neodymium woofers with 50mm voice coil (2")
- 4x25 mm (1") neodymium compression drivers and 44mm voice coil (1.7")
- 58Hz – 20Khz frequency response
- class D 600 Wrms amplifier for LF
- class D 300 Wrms amplifier for HF
- High efficiency switching power supply
- DSP on board with 8 EQ presets, +/- 5db HF level control for accurate amplitude shading
- control panel with XLR input and link, volume, presets, HF level, HP filter, ground-lift
- 90° horizontal waveguide with near flat wavefront up to 18Khz
- 18 mm (3/4") birch plywood enclosure, with handles and mechanical hardware for suspension
- Mechanical hardware for suspension with 10:1 safety factor
- different configurations allowed by a complete range of optional accessories
- Performance comparable to high-end touring line arrays at an extremely competitive cost
- the extended frequency response at 58Hz allows the use in medium SPL applications without additional subwoofers.
Configuration: Line Array
Frequency response: 58Hz - 20kHz
Low frequency woofer: 4x 8" with 2" VC
High frequency driver: 4x 1" with 1.7" VC
Maximum SPL cont/peak: 130/137dB
Dispersion: 90 x 20 (HxV)
Input impedance: 22kohm
Input connector: XLR with link out
Net Dimension (WxHxD): 727 x 510 x 405mm
Net Weight: 45.5kg
Transport Dimension (WxHxD): 830 x 620 x 520mm
Transport Weight: 55.5kg
AC Power requirements: 640VA
Built-in amplifier LF/HF: 600/300w RMS
Built-in amplifier peak LF/HF: 1200/600w
Power cord: 5m PowerCon True1
1 Year Warranty
