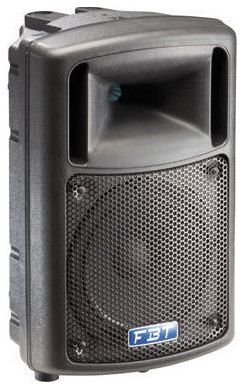

FBT Evo2Maxx 6A 500w Active 15'' Speaker
2-way Bass Reflex Active Speaker - 15"+ 1" - 400Watts RMS + 100Watts RMS
- Buy 2 for £775.00 each and save 1%
The FBT EvoMaxX 6A active pa speaker runs at 400W LF + 100W HF RMS. The new EvoMaxX range features more powerful class D amplifiers with an extremely low noise floor and have been developed to be even lighter! Equalisation is now quick and simple thanks to the EvoMaxX digital signal processor with four built in presets. One of the main goals that FBT set out to achieve with the EvoMaxX series was to offer a lot more value for the money!
- Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance.
- High efficiency loudspeakers custom made for FBT with a weather resistant coating, allowing use in covered outdoor applications.
- B&C HF compression drivers.
- Latest Class D, 400W LF and 100W HF power amplifiers with high efficiency switch mode power supplies. These amplifiers boast an extremely lightweight design with passively cooled circuitry, meaning no noisy fans!
- New digital signal processor with dynamic equalizations and sophisticated dynamic limiters four improve sound quality and SPL granting reliable and distortion-free audio reproduction
- New 4 DSP presets for improved versatility and ease of use
- Premium sound quality as results of extensive listening test
- High SPL thanks to FBT’s new digital limiter algorithms and high power class D amplifier
- Ergonomic carrying handles, M10 fly points, a top-hat speaker stand socket and a stage monitor taper – all included to ensure superb versatility for live sound events and permanent installations.
Evo2MaxX 6a
Processed Active Speaker
400W + 100W RMS 130dB SPL
2-way, bi-amplified, bass reflex design cabinet.
380mm (15) LF woofer with 64mm (2.5) voice coil, custom made for FBT.
25mm (1) exit throat B&C HF compression driver with 44mm (1.7'') voice coil.
Frequency response from 42Hz to 20 kHz.
Biamped: 400w RMS LF, 100w RMS HF, Class D power amplifiers with switch mode power supplies.
Digital Signal Processor with 4 Equalization Presets.
Control Panel: features balanced XLR/Jack input and XLR link out, Volume, EQ Presets, HP Filter, 3 status LED indicators.
90°H x 60°V Constant Directivity Horn.
Sturdy gas-injected polypropylene molded enclosure with two integrated handles and Stage Floor Monitor taper.
4 x M10 suspension points, 35mm (13/8'') top-hat speaker stand socket, wall bracket mount flange plate.
Enclosure suitable for stacking.
Extremely light, Net Weight. only 21kg (46.8 lb).
Configuration: 2 Way
Built-in amplifier LF/HF: 400/100w RMS
Built-in amplifier peak LF/HF: 800/200w
Frequency response: 42Hz - 20kHz
Low Frequency woofer: 15" with 2.5" VC
High Frequency driver: 1" with 1.7" VC
Maximum SPL cont/peak: 126 / 130dB
Dispersion: 90 x 60 (HxV)
Input impedance: 22kohm
Crossover Frequency: 1.6Khz
AC Power requirements: 450VA
Input connector: XLR with Link out
Power cord: 5m IEC
Net Dimension (WxHxD): 482 x 757 x 399mm / 19 x 29.8 x 15.7in
Net Weight: 24.4kg / 53.8lb
