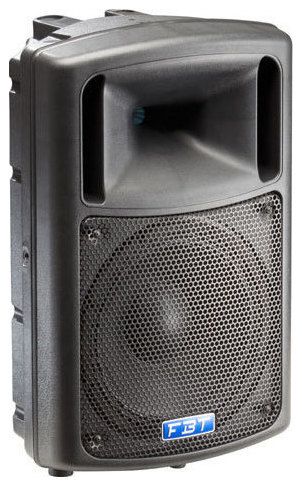

FBT Evo2MaxX 4A 500w Active 12'' Speaker
SKU
365017
£625.00
Back Order
2-Way Bass Reflex Active Speaker - 12" + 1" - 400Watts RMS + 100Watts RMS
- Buy 2 for £612.50 each and save 2%
Categories: Speakers & PA Packages, Active Speakers
Evolving from the FBT EvoMaxX Series of loudspeakers, FBT Evo2MaxX speakers feature totally new Digital Sound Processing resulting in improved sound quality and SPL, especially in bass reproduction at high volume.
Alongside these key performance improvements, FBT has been inspired to develop the Evo2MaxX Series by one very important goal – offering the customer more value for money. Evo2MaxX lightweight yet sturdy polypropylene cabinets feature a monitor taper designed to ensure that they perform with excellence no matter whether they are used at front of house for a main sound system, as stage floor monitors or within permanent installations.
Additional options are also available for extending low frequency response in the shape of the 15” subwoofer Evo2MaxX 9Sa or the SUBLine 12Sa, 15Sa and 18Sa, all of which boast birch plywood enclosures with 12”, 15” band-pass and 18” reflex designs respectively.
- 2-way, bi-amplified, bass reflex design cabinet.
- 320mm (12”) LF woofer with 64mm (2.5”) voice coil, custom made for FBT.
- 25mm (1”) exit throat B&C HF compression driver.
- Frequency response from 50Hz to 20 kHz.
- Biamped: 400w RMS LF, 100w RMS HF, Class D power amplifiers with switch mode power supplies.
- Digital Signal Processor with 4 Equalization Presets.
- Control Panel: features balanced XLR/Jack input and XLR link out, Volume, EQ Presets, HP Filter, 3 status LED indicators.
- 90°H x 60°V Constant Directivity Horn.
- Sturdy gas-injected polypropylene molded enclosure with two integrated handles and Stage Floor Monitor taper.
- 4 x M10 suspension points, 35mm (1â…œ”) top-hat speaker stand socket, wall bracket mount flange plate.
- Enclosure suitable for stacking.
Configuration: 2 Way
Built-in amplifier LF/HF: 400/100w RMS
Built-in amplifier peak LF/HF: 800/200w
Frequency response: 50Hz - 20kHz
Low Frequency woofer: 12" with 2.5" VC
High Frequency driver: 1" with 1.4" VC
Maximum SPL cont/peak: 124 / 130dB
Dispersion: 90 x 60 (HxV)
Input impedance: 22 Kohm
Crossover Frequency: 1.6Khz
AC Power requirements: 450VA
Input connector: XLR with loop
Power cord: 5m IEC
Net Dimension (WxHxD): 407 x 634 x 330mm / 16 x 25 x 13in
Net Weight: 15.6kg / 34.4lb
Transport Dimension (WxHxD): 510 x 704 x 310mm / 20.1 x 29.1 x 16.1in
Transport Weight: 18kg / 39.6lb
5 Year Warranty
