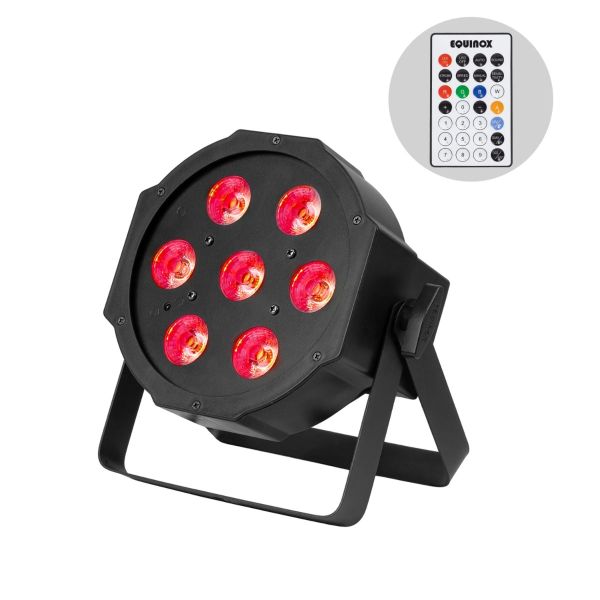

Equinox MaxiPar Quad MK2 – RGBW LED Slim DMX PAR Uplighter

Equinox MaxiPar Quad MKII RGBW LED PAR Can – Slim DMX Stage & Uplighting Fixture

Brighter. More Powerful. Same Compact Design.

The Equinox MaxiPar Quad MKII retains the slim, lightweight form factor of its predecessor but delivers significantly increased brightness — now producing 3,280 Lux @ 2m (full on) compared to the previous 1,554 Lux.

Designed for mobile DJs, venues and event production, this compact PAR fixture provides rich colour washes and smooth RGBW mixing for professional lighting setups.

Powerful RGBW LED Performance

The MaxiPar Quad MKII features:

• 7 x 5W quad-colour RGBW LEDs
• 25° beam angle
• Smooth, deep colour mixing
• 0–100% dimming
• Variable strobe

The addition of white LEDs ensures cleaner pastel tones and more accurate colour reproduction compared to traditional RGB-only fixtures.

Flexible Control Options

This fixture offers multiple operational modes:

• DMX control (2 / 3 / 3 / 4 or 10 channels selectable)
• Auto mode
• Sound active mode
• Primary/secondary (master/slave) mode

It includes a 4-button LED display for simple onboard control and is supplied with an IR remote for quick adjustments.

Important: The MKII version will not master/slave exactly with the original MaxiPar Quad model.

Designed for Uplighting & Stage Use

With its slim housing and integrated bracket, the unit can be:

• Floor mounted for uplighting
• Truss mounted
• Wall mounted
• Used in stage wash applications

Rubber feet allow the fixture to sit flat on the floor, making it ideal for venue uplighting and wedding décor applications.

Side-entry XLR and IEC connections ensure tidy cable management in professional setups.
