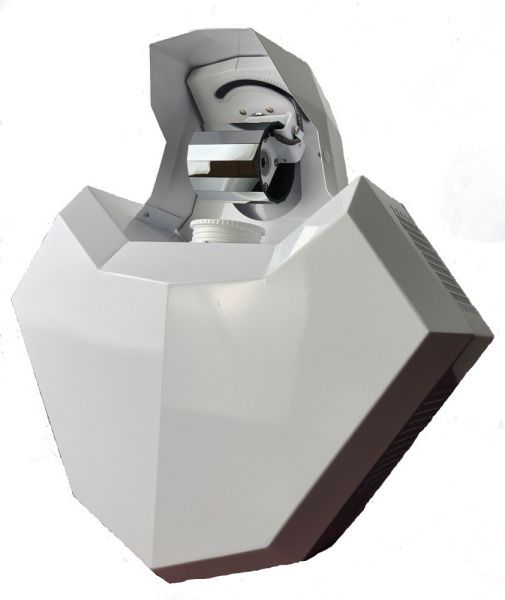

Expanding on the success of the popular Helix range, the Equinox Helix Evo XP is a powerful 150W barrel effect combined with a mirror dish to project an array of multi-coloured rotating gobos that sweep across the room.

All 8 gobos are interchangeable along with a separate colour wheel featuring 9 colours plus open.

To further enhance this effect, an additional 11-piece gobo pack is also included to cover many popular events and celebrations.

Clever programming allows users to select a single gobo and then have specific colours from the colour wheel added whilst being activated automatically or via sound.

The unit has a wide beam angle but still packs a punch over a long distance thanks to its superior optics and high output LED.

The Helix Evo XP can be linked with the Helix XP, Helix Scan XP and Helix Roller XP to create synchronised shows.

Available in a black or white housing.

1 x 150W cool white LED (7700K)

Beam angle: 2.3° (per beam)

Beam angle: 22° (per gobo flower)

Coverage angle: 160°

Refresh rate: 1kHz

Manual focus

8 rotating, replaceable gobos

9 colours + open

DMX channels: 3/9 or 12 selectable

Auto, sound active and primary/secondary modes plus built-in programs

Pan: 180°, Tilt: 360° continuous

0 - 100% dimming

Variable strobe

Optional CA 8 controller

Supplied with quick release omega clamp

Heavy duty bracket with multiple omega, clamp and wall mounting options

4 push button menu with OLED display

PowerTwist TR1 input/output

3-Pin XLR input/output

Fan cooled

Supplied with an additional gobo pack containing 11 popular gobos

Power consumption: 149W
Power supply: 100~240V, 50/60Hz
Fuse: T3.15A 250V
Dimensions (H x W x D): 467 x 456 x 208mm
Weight: 7.5kg

1 Year Warranty
