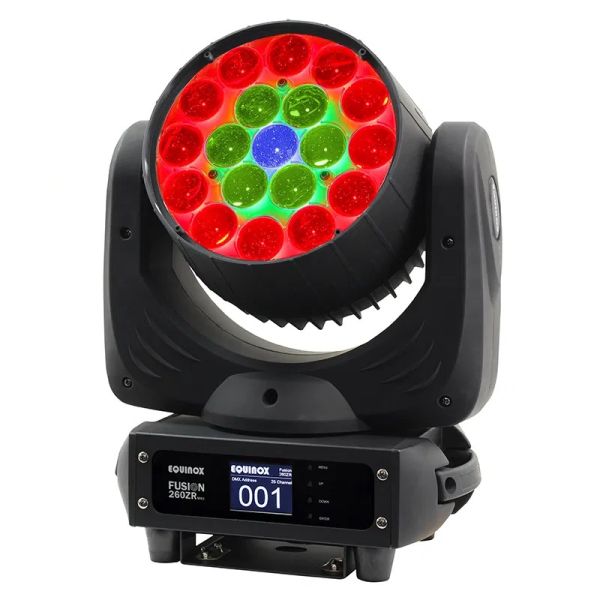

The Fusion 260ZR MKII builds on the excellence of its predecessor with quieter temperature-controlled fans, improved dimming, and smoother movement capabilities.

It features 19 x 12W quad-colour LEDs (RGBW), delivering everything from gentle pastels to vibrant saturated colours.

Arranged in three concentric circles, the LEDs offer versatile programming options for stunning colour and pattern effects, while ensuring comprehensive wash coverage.

The unit is also equipped with a 6°-50° motorized zoom.

Improved dimming
Smoother movements
Quieter, temperature controlled fans
Dimming curves and refresh rate settings
19 x 12W quad-colour LEDs (RGBW)
Adjustable beam angle: 6°- 50°
6° - 40,098 Lux @ 2m (full on),
50° - 6,316 Lux @ 2m (full on)
Refresh rate: 650Hz, 1.5kHz, 3.6kHz, 12kHz or 25kHz selectable
Motorised zoom
Pixel zone mapping
DMX channels: 2/8/17 or 25 selectable
Auto, sound active and master/slave modes
Forward facing show modes
Pan/tilt auto correction
16-Bit pan/tilt positioning
Pan: 540°, Tilt: 270°
0 - 100% dimming
Variable strobe
4 dimming curves: Linear, square law, inverse square law and S-curve
Supplied with quick release omega clamps
Square hole spacing on omega clamp receivers allows for clamps to be mounted in all orientations
4 button menu with LCD display
PowerTwist input/output
3-Pin XLR input/output
Temperature controlled fans

Power consumption: 290W
Power supply: 100~240V, 50/60Hz
Fuse: F4A 250V
Dimensions (H x W x D): 414 x 324 x 221mm
Weight: 9.7kg

1 Year Warranty
