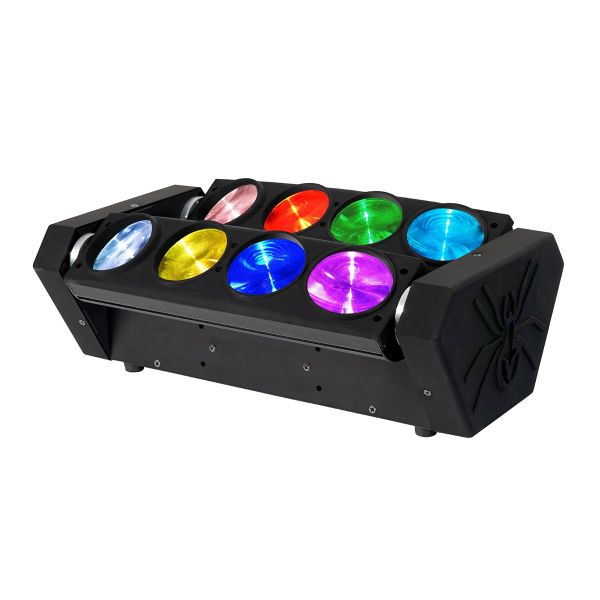

The Butterfly Quad is a dynamic multi-beam effect featuring two sweeping LED bars, each loaded with four individually controllable narrow beams. Dispensing eight intense and sharp long-throw beams the butterfly cuts through the air with ease. The four button menu system allows control of master/slave functions, and the fixture can be also be operated in sound active and DMX modes.

8 x 10W quad-colour LEDs (RGBW)
Beam angle: 3°
Pixel mapping capabilities
Refresh rate: 4kHz
DMX channels: 1/6/ 12 or 36 selectable
Auto, sound active and master/slave modes
0-100% dimming
Variable strobe
Tilt: 160°
Supplied with hanging bracket
4 button menu with LED display
IEC power input/output
3-Pin XLR input/output

Power consumption: 100W
Power supply: 100〜240V, 50/60Hz
Fuse: F3A 250V
Dimensions (H x W x D): 148 x 402 x 235mm
Weight: 4.1kg

1 Year Warranty
