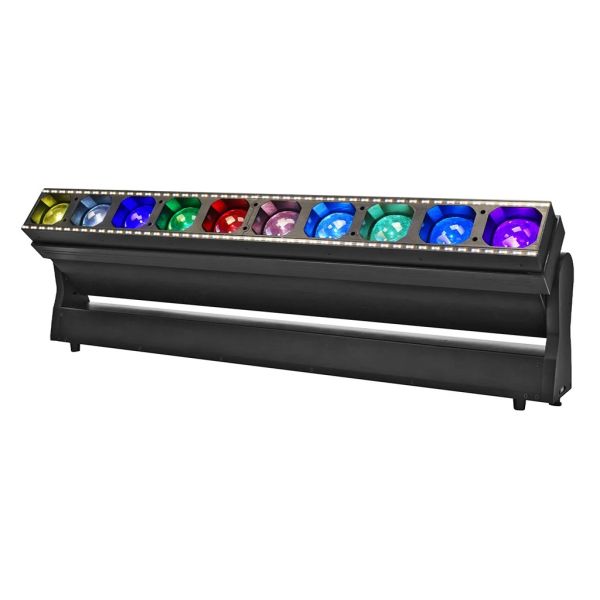

The Elumen8 Meteor 1060 Zoom is a high-output moving batten incorporating ten 60W RGBW LEDS with full pixel mapping capabilities along with 96 x 1W tri colour, 96 x 2W warm white and 96 x 2W cool white LEDs for added effects.

High quality optics ensure a smooth, homogenized output across the batten through a broad pallet of pastel and saturated colours.

Multiple operating modes create unique effects including beams, washes, and strobe.

The fixture also offers pre-programmed macros and patterns and features a motorized zoom with a beam angle of 3° to 41°.

There are two connection locations for the included omega clamps accept most hardware and a tool-less connection system allows units side-by-side connection. PowerTwist TR1, 5-Pin DMX and Ethernet inputs and outputs to allow for a problem-free, rental-ready connection.

2 year warranty
10 x 60W quad-colour LEDs (RGBW)
96 x 1W tri-colour SMD 5050 LEDs (RGB), 96 x 2W cool white SMD 5050 LEDs (CW) plus 96 x 2W warm white SMD 5050 LEDs (WW)
Adjustable beam angle: 3°- 41°
Lumens – Source: 25,450
Lumens – Output: 23,500
3° - 109,375 Lux @ 2m (full on), 41° - 10,125 Lux @ 2m (full on)
CRI: 78
Refresh rate: 15 selectable presets between 900Hz-25kHz
Motorised zoom
Full pixel mapping capabilities
Control protocols: DMX, Art-net and sACN
DMX channels: 17/27/99/108 or 168 selectable
Manual control mode
Built-in colour macros and patterns
Colour temperature presets
Tilt auto correction
16-Bit tilt positioning
Tilt: 200°
0 - 100% dimming
4 dimming curves: Linear, square law, inverse square law and S-curve
Variable strobe
Quick release omega clamps included
RDM (Remote Device Management)
4 button menu with 1.8” TFT display
Display battery backup for offline configuration
PowerTwist TR1, 5-Pin XLR and Ethernet inputs/outputs
Temperature controlled fans

Power consumption: 1090W
Power supply: 100~240V, 50/60Hz
Fuse: T10A 250V
Dimensions (H x W x D): 291 x 1002 x 115mm
Weight: 18.7kg

2 Year Warranty
