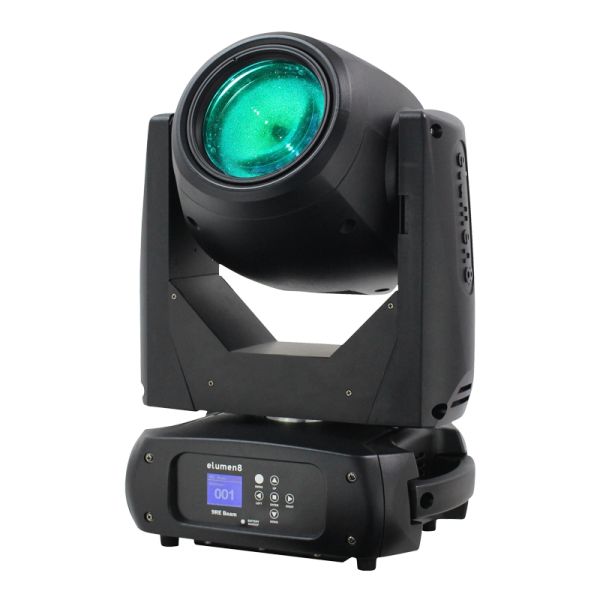

The powerful 9RE Beam allows users to create sharp, well-defined 2.5° beams, powered by an MSD 260R9 (8,000K) discharge lamp.

The fixture not only has superb optics and motorised focus, it also features 2 prisms that can be used simultaneously, giving the lighting designer or user a host of options to create stunning light shows.

This moving head also features 12 colours (plus 5,600K, 3,200K and open) and 17 fixed gobos (plus open), along with an onboard 6 button menu with 1.8” LCD display, and selectable 16 bit pan and tilt with auto correction.

The 9RE Beam boasts all the fundamental features you would expect from Elumen8 making this a truly ‘event ready’ fixture.

2 year warranty
YODN MSD 260R9 discharge lamp (8,000K)
Beam angle: 2.5°
201,000 Lux @ 10m
Motorised focus
CRI: 75
16 facet circular rotating indexable prism plus 4 facet linear rotating indexable prism
Frost filter (21°)
Gobo wheel: 17 static gobos + open
Colour wheel: 12 colours + 5,600K + 3,200K + open
DMX channels: 16 or 18 selectable
Manual mode
Pan/tilt transit lock
Pan/tilt auto correction
16-Bit pan/tilt positioning
Built-in pan/tilt macros
Pan: 630°, Tilt: 270°
0 - 100% dimming
Variable strobe
Quick release omega clamps included
6 button menu with 1.8” LCD display
Display battery backup for offline configuration
powerCON input/output
3-Pin XLR input/output
5-Pin XLR input/output
Fan cooled

Power consumption: 340W
Power supply: 100~240V, 50/60Hz
Fuse: F3A 250V
Dimensions (H x W x D): 469 x 337 x 243mm
Weight: 15.6kg

2 Year Warranty
