dB Technologies ES1002 - Column PA system

Name: dB Technologies ES1002 - Column PA system
Brand: dB Technologies
SKU: P731552
Price: 1299 GBP
Availability: InStock

SKU

P731552

Skip to the end of the images gallery

Skip to the beginning of the images gallery

-0%

Special Price £1,299.00 Regular Price £1,301.01

In stock

MPN :
GTIN : 8058159118888

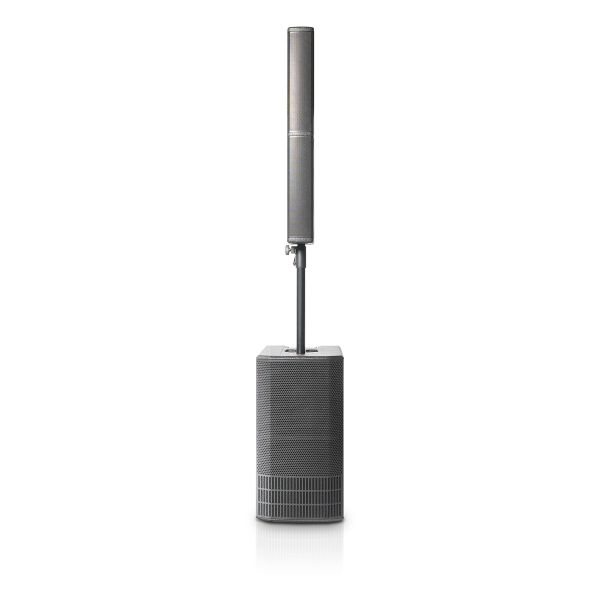

dB Technologies ES1002 - Column PA system

Remarkably powerful (1800 W peak) for its compact size, this complete PA system is designed for a quick and smooth set up, equally responding to musicians and djs needs.

ES 1002 includes one cover for the sub and one cover for the top module.

Bundle Includes
Qty	SKU	Item	Availability
1	242194	dB Technologies ES 1002 Column PA Speaker (Sub)	In Stock
1	901563	dB Technologies ES 1002 Column PA Speaker (Top)	In Stock
1	291872	dB Technologies TC-ES212 Transport Cover For ES1002 Sub	In Stock
1	135517	dB Technologies TC-ES84 Transport Cover For ES1002 Top	In Stock

Category: Active Speakers

Details

Key Features

Tech Spec

Warranty

Reviews

ES1002 comes with 1 subwoofer and 1 column top, both powered by a class D DIGIPRO G3 amplifier delivering 1800 W peak.

The top satellite is equipped with 8x4” mid-woofers, whose alignment allows an asymmetrical vertical coverage, avoiding any useless dispersion of the sound above the audience. Moreover, each mid-range woofer is provided with a newly designed phase-plug able to widen the horizontal coverage while guaranteeing a perfect intelligibility of the vocal range from every listening position.

The sub encompasses 2X12” woofers in bass-reflex configuration, the amp module and the control panel, whose inclined design improves usability. I/O section allows to connect up to 2 INPUTS (XLR mono and RCA stereo with independent volume controls) and provides a balanced link out to feed a second system or a stage monitor.

A rotary with 8 preset EQ helps users to perfectly tune the system, adapting it to different environments and uses (playback, live music, speech etc.).

The enclosures of both top and sub are made of plywood, coated with a durable scratch-resistant finish, which makes ES1002 truly road-ready.

BI-AMPED 1800 W ACTIVE PA SYSTEM

IMPROVED POWER/SIZE RATIO

EXTRA-PRECISE COVERAGE DISPERSION (HORIZONTAL AND VERTICAL)

NEW PHASE-PLUG DESIGN FOR PERFECT INTELLIGIBILITY

ENHANCED USABILITY FOR CONTROL PANEL

8 EQ PRESETS

Technical Data

Speaker Type: BI-Amped Mono Column System

Acoustical data

Frequency Response [-10dB]: 43 - 20.000 Hz
Max SPL: 130.7 dB
MF - HF: 8x 4"
Type MF - HF: Neodymium
LF: 2x 12"
Directivity (HxV): 97x40°

Amplifier

Amp Technology: Digipro® G3
Amp Class: Class-D
Power Amp Peak: 1800 W

Processor

Controller: DSP 24 Bit/48 kHz
System Presets: Flat - Bass boost - Bass reduction - Playback - Speech - Long throw - HPF 80 Hz - HPF 120 Hz
Limiter: Dual Active, Peak, RMS, Thermal
Controls: DSP rotary encoder, volume controles, MIC/LINE Switch
Crossover Frequency LF-HF: 160 Hz

Input

Mains Connections: VDE
Signal Input: 1x Combo (XLR/Jack) balanced/unbalanced input – Mic/Line, 1x RCA stereo input
Signal Out: 1x XLR balanced output with aux volume + 1x speakon to top

Mechanics

Housing (Subwoofer): Black Painted Plywood
Housing (Tops): Multiplex Plywood
Handles: 3 (1 on top + 1 each side on sub)
Pole Mount: 36 mm (M20 threaded hole)
Width (Top): 110 mm (4.33 in)
Height (Top): 905 mm (35.63 in)
Depth (Top): 160 mm (6.3 in)
Width (Subwoofer): 360 mm (14.17 in)
Height (Subwoofer): 680 mm (26.77 in)
Depth (Subwoofer): 545 mm (21.46 in)
Weight (Top): 5.8 Kg – 12.79 lbs
Weight (Subwoofer): 29.3 Kg – 64.59 lbs

1 Year Warranty
