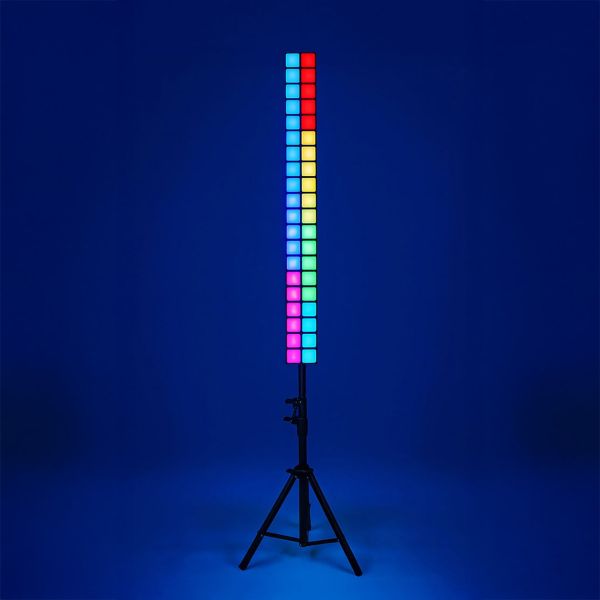

Citronic Matrix Bar Pro 20×2 RGB Matrix Light with Stand
SKU
844127
£219.00
Back Order
The Citronic Matrix Bar Pro 20×2 is a professional RGB matrix lighting bar system supplied with a stand. Featuring 200 SMD5050 LEDs, DMX and Art-Net control plus dynamic sound and auto modes, it delivers striking moving colour effects for stage and event lighting.
Category: DJ Effects Lighting
Citronic Matrix Bar Pro 20×2 RGB Matrix Lighting Bar – Includes Stand
Professional RGB Matrix Lighting Bar System
The Citronic Matrix Bar Pro 20x2 Matrix Light and Stand is a versatile RGB pixel lighting solution engineered for stage, DJ, and event production environments.Powered by 200 high-output SMD5050 RGB LEDs, this matrix bar delivers vibrant colour mixing, smooth animation effects, and powerful visual impact across live performances and installations.
Advanced Pixel Lighting Control
The Matrix Bar Pro supports professional lighting workflows through:- DMX operation in 3, 5, 17, 80 or 120 channel modes
- Art-Net network pixel mapping capability
- Auto, static, sound-reactive and master/slave modes
Users can fine-tune pattern speed, strobe frequency, and sensitivity for customised show design.
Flexible Mounting System
The system includes a professional tripod stand allowing vertical deployment with height adjustment.Mounting options include:
- Supplied tripod stand installation
- Truss mounting using quick release clamps
- Horizontal linking between multiple units
Integrated top and bottom connectors enable scalable lighting arrays.
Intelligent Thermal Protection
Designed for extended performance use, the Matrix Bar Pro features:- Intelligent fan cooling system
- Temperature protection monitoring
- Twist-and-lock power connections for secure operation
Ideal Applications
- Nightclub lighting installations
- Mobile DJ event production
- Concert and stage backdrops
- Corporate event visuals
- Wedding and entertainment lighting
- 200 × SMD5050 RGB 3-in-1 LEDs
- Pixel mapping via Art-Net
- Multiple DMX channel configurations
- Auto, sound-active and static programs
- Linear dimming and strobe effects
- Professional tripod stand included
- Quick-release truss mounting compatibility
- Thermal management cooling system
- Linkable bar design
| Specification | Detail |
|---|---|
| LED Type | 200 × SMD5050 RGB |
| LED Power | 0.2 W per LED |
| Effects | RGB mixing, dimming, strobe |
| Control Modes | Auto, Sound, Static, DMX, Art-Net |
| DMX Channels | 3 / 5 / 17 / 80 / 120 |
| DMX Connection | 3-pin DMX or RJ45 |
| Power Input | Twist-lock power in/out |
| Power Supply | 110–240 V AC, 50/60 Hz |
| Power Consumption | 52 W |
| Main Unit Dimensions | 75 × 110 × 1100 mm |
| Stand Height Range | Approx. 2.04 m – 2.85 m assembled |
| Weight | 3.9 kg |
1 Year Warranty
