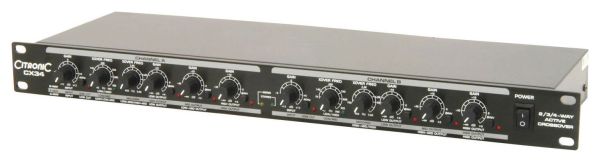

Citronic CX34 2/3/4 Way Active Crossover

The CX34 is a 2 or 3-way stereo or 4-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.

2 or 3-way stereo, 4-way mono crossover

19'' rack mountable

Linkwitz-Riley 24dB/octave, state variable

Continuously adjustable cutoff frequencies

40Hz ultra-low frequency cut

Phase invert function

Inputs and outputs via XLR

Power supply 115/230Vac selectable 50/60Hz (IEC)

Input impedance: balanced 50k ohms

Input impedance: unbalanced 25k ohms

Output impedance 200 ohms

Crossover ranges 45-960Hz (switchable 10x) or 450Hz-9.6kHz

Filter slope 24dB/octave

Frequency response 20Hz TO 20KHz, +0/-0.5dB

Signal to noise ratio >90dB

THD <0.004% @ +4dBu, 1KHz

Dimensions 482 x 170 x 44 mm

Weight 2.5kg
