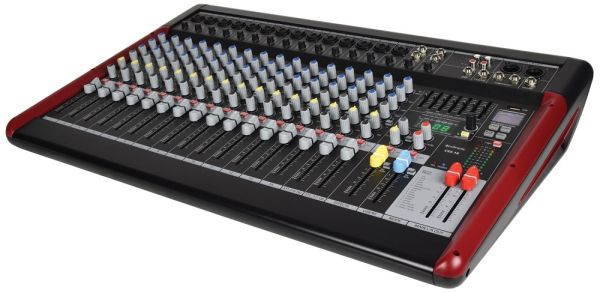

Citronic CSX-18 Live Mixing Console
SKU
962372
£249.00
In stock
Citronic CSX-18 Live Mixing Console
Category: Studio & PA Mixers
Fully featured live mixing console with 14 mono mic/line inputs on XLR/jack and 2 stereo line jack inputs.
All channels have gain, 3-band EQ, switchable pre/post aux output, FX send, pan, PFL switch and 60mm channel faders.
Phantom power is switchable to all XLR inputs for condenser microphones and active DI boxes.
Internal effects take the form of a 16-program 24-bit DSP engine with independent level fader and AFL switch for monitoring.
An inbuilt media player can accept a USB memory stick for playback of stored audio tracks and can also record the mix output for documenting rehearsals or performances.
B/T wireless compatibility enables pairing with a smart phone or tablet for remote playback.
Global EQ is handled by a 7-band graphic EQ and the overall mix is fed from master faders to left & right balanced XLR outputs.
A 2-track RCA line input has a level control for mixing in a playback source.
2-track RCA output can be connected on to recording equipment or as an additional output feed if required.
Low noise and clean audio path with enough features and routing options for live performances, conferences and theatre productions.
All channels have gain, 3-band EQ, switchable pre/post aux output, FX send, pan, PFL switch and 60mm channel faders.
Phantom power is switchable to all XLR inputs for condenser microphones and active DI boxes.
Internal effects take the form of a 16-program 24-bit DSP engine with independent level fader and AFL switch for monitoring.
An inbuilt media player can accept a USB memory stick for playback of stored audio tracks and can also record the mix output for documenting rehearsals or performances.
B/T wireless compatibility enables pairing with a smart phone or tablet for remote playback.
Global EQ is handled by a 7-band graphic EQ and the overall mix is fed from master faders to left & right balanced XLR outputs.
A 2-track RCA line input has a level control for mixing in a playback source.
2-track RCA output can be connected on to recording equipment or as an additional output feed if required.
Low noise and clean audio path with enough features and routing options for live performances, conferences and theatre productions.
- Integral USB player/recorder with BT receiver
- 24-bit DSP effects with 16 programs
- 14 mono balanced XLR/jack inputs
- 2 stereo jack inputs
- 7-band graphic EQ
- Switchable +48V phantom power
- Power supply 100-240Vac, 50/60Hz (IEC)
- DSP effects processor 24-bit sigma-delta, 64/128 times over-sampling, 40kHz
- Output connections Main L+R balanced XLR, Monitor L+R 6.3mm jack
- THD +N <0.01% (Channel to mix out)
- Power consumption max. 30W
- Fuse T3AL @ 230V / T6AL @ 115V
- Input level +24dBu (mic/line), +20dBu (stereo line) max.
- Phantom power +48V globally switched to XLR inputs
- EQ: high 12kHz ±15dB (shelving)
- EQ: mid 2.5kHz ±15dB (band pass)
- EQ: low 80Hz ±15dB (shelving)
- 2-track L+R RCA, 4k Ohm, -2dBu
- EQ master bands 63, 160 , 500, 1k, 2.5k, 6.3k, 16k (all in Hz)
- Bluetooth version 5.0
- Output level +26dBu (XLR), +20dBu (TRS jack) max.
- Output : master XLR balanced, ＜75 Ohm, +4 dBu, Max.+22 dBu
- REC output L+R RCA, <75 Ohm, -2dBu
- Headphone impedance 30-600 Ohms
- Frequency response 20Hz - 30kHz (-0.5dB)
- Channel crosstalk >82dB
- CMRR >75dB (Mic @ 1kHz)
- Noise rms : 22Hz-22kHz EIN -122dBu, Residual output ＜-90dBu, Main/Aux mix ＜-82dBu
- Dimensions 622 x 402 x 108mm
- Weight 6.3kg
1 Year Warranty
