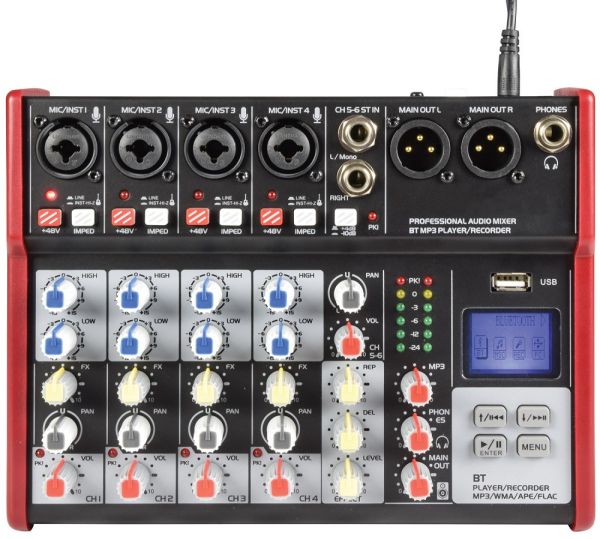

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input.

Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR.

Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments.

An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link.

Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

Integral USB multi-format audio player

BT wireless connectivity

Digital delay effect for vocals or instruments

Individually switchable +48V phantom power

Built in record function

Supplied with DC power adaptor

Weight 1.17kg
Dimensions 220 x 165 x 66mm
Inputs 4 x combo XLR/jack + stereo jack
Power supply 5Vdc 1A (adaptor included)
Phantom power +48V individually switchable (XLR inputs only)
Audio source Internal USB player/recorder & BT receiver
Audio format USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
Power consumption max. 5W
Gain -14 to +40dB
EQ: low ±15dB @ 80Hz
EQ: high ±15dB @ 12kHz
Input impedance : mic 2k Ohms
Input impedance : instrument 1M Ohms
Input impedance : line 20k Ohms
Bluetooth version 2.1 + EDR
Frequency response 20Hz - 20kHz (±0.5B)
THD +N <0.03% @ 1kHz
Dynamic range 102dB
Crosstalk : stereo 92dB
Output Left + Right balanced XLR
Output impedance 120 Ohms
Max. output level 3Vrms

1 Year Warranty
