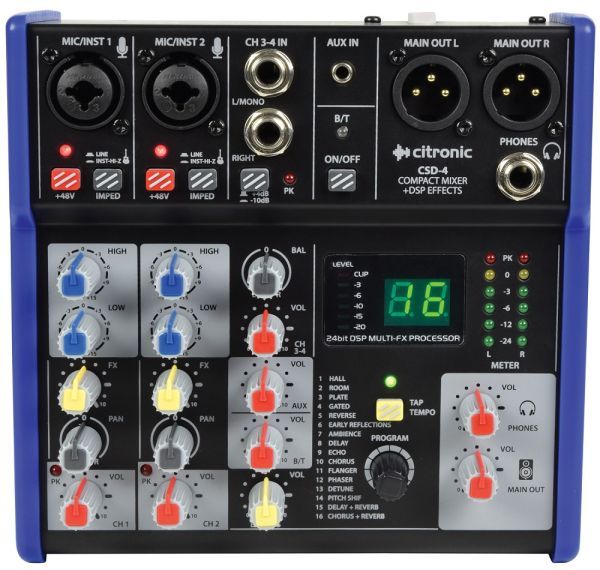

Citronic CSD-4 Compact Mixer with BT wireless and DSP Effects
SKU
175510
£99.00
In stock
Citronic CSD-4 Compact Mixer with BT wireless and DSP Effects
Category: Studio & PA Mixers
Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input.
Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR.
Input channels have High/Low EQ and Pan controls. The Bluetooth pairing button enables wireless connection to a smart phone or tablet for playback.
All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments.
Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR.
Input channels have High/Low EQ and Pan controls. The Bluetooth pairing button enables wireless connection to a smart phone or tablet for playback.
All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments.
Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
- Bluetooth pairing for smartphone or tablet
- 16 program, 24-bit DSP effects engine
- Individually switchable +48V phantom power
- Supplied with DC power adaptor
- Weight 0.92kg
- Dimensions 171 x 166 x 66mm
- Inputs 2 x combo XLR/jack + stereo jack
- Power supply 5Vdc 1A (adaptor included)
- Output Left + Right balanced XLR
- Effects 16 program DSP (24-bit sigma-delta, 40kHz)
- Audio source Bluetooth receiver
- Bluetooth version 2.1 + EDR
- Power consumption max. 5W
- EQ: low ±15dB @ 80Hz
- EQ: high ±15dB @ 12kHz
- Phantom power +48V individually switchable (XLR inputs only)
- Input impedance : mic 2k Ohms
- Input impedance : instrument 1M Ohms
- Input impedance : line 20k Ohms
- Frequency response 20Hz - 20kHz (±0.5B)
- THD +N <0.03% @ 1kHz
- Dynamic range 102dB
- Crosstalk : stereo 92dB
- Output impedance 120 Ohms
- Max. output level 3Vrms
1 Year Warranty
