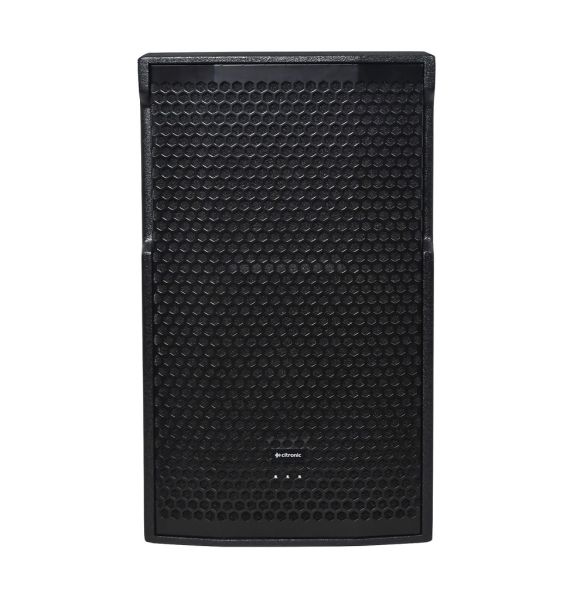

CORVA active speaker cabinets are a milestone in the Citronic commitment to high quality sound at all levels, packing a remarkable level of output into a single heavy duty cabinet.

Designed for stacking or pole mounting, these cabinets can equally be deployed at height, using the 12 x M8 flying points.

Each enclosure is loaded with specially designed heavy duty drivers to deliver powerful and immediate sound pressure levels. Each powerful class-D amplifier section is DSP controlled with a menu-driven colour display for setting EQ profiles, dynamics and gain.

In-depth editing is enabled via a USB interface to connect a PC and accurately adjust, test and save custom DSP settings. For larger sound reinforcement applications, CORVA active cabinets have the capability and flexibility to provide big sound on demand.

Specially developed heavy duty driver components
Inbuilt high power class-D amplifiers
Menu driven DSP with colour display and USB-PC interface
Sturdy plywood enclosure with polyurea finish

Weight 33.0kg
Dimensions 715 x 440 x 410mm
SPL max. 132dB
Sensitivity @ 1W/1m 100dB
Frequency response 45Hz - 20kHz
Output power : max. 1800W
Output power : rms 900W
HF driver 75mmØ (3") Ti compression driver
Main driver 380mmØ (15") with 100mm voice coil
Fuse rating T10A
Power supply 100-240Vac, 50/60Hz (Powercon)
Inputs 2 x Mic/Line (XLR/6.3mm) + Aux (3.5mm)
Line output XLR
Amplifier : construction Class-D, DSP controlled
Impedance 8 ohms (main driver and HF driver)
Flying points 12 x M8

1 Year Warranty
