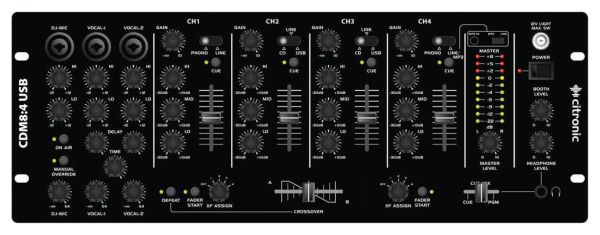

Citronic CDM8:4 USB Mixer

This 14 input, 4 channel professional DJ mixer is ideal for mobile use and installations. Each channel has 3 band EQ with individual volume control that can be assigned to either side of the cross fader or cue mix fader. It features USB IN/OUT for playback or recording, and there are 3 x microphone inputs, great for karaoke and DJ set-ups.

2 x phono, 6 x line, 2 x USB IN/OUT, 1 x 3.5mm jack and 3 x microphone inputs

3-band EQ on all stereo channels

DJ mic + 2 vocal mic inputs for karaoke

Hi/Lo EQ for each mic channel

45mm rail glide replaceable crossfader with defeat and assign channels

Remote fader starts on stereo channels

3.5mm input option for patching in an MP3 player

Internal digital delay or FX loop for vocal mics

Individual gain controls on each music channel

12Vdc BNC output for console light

Power supply 230Vac, 50Hz

Equaliser : Bass -30 +10db@ 100Hz

Equaliser : Midrange -30 +10db@ 800Hz

Equaliser : Treble -30 +10db@ 9kHz

Signal to noise ratio : Line >87dB

Signal to noise ratio : Mic 68dB

Signal to noise ratio : Phono 73dB

Headphone output 112mV @ 32 Ohms

Console light power 12Vdc 5W max (BNC)

Dimensions 483 x 175 x 110mm (4U)

Weight 4.06kg
