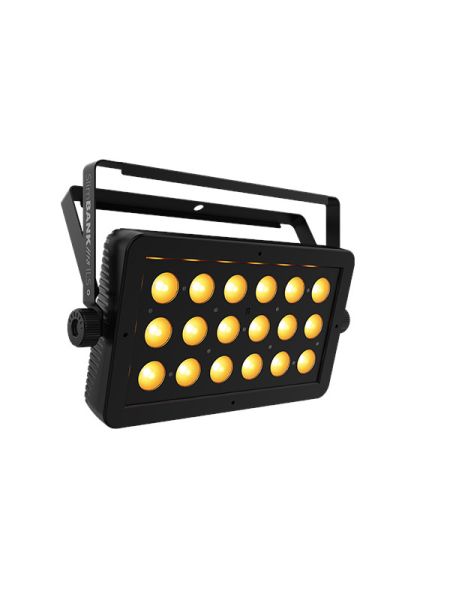

SlimBANK H18 ILS is a versatile hex-color (RGBAW+UV) LED wash light with brilliant eye candy effects.

ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3.

Built-in dimming curves achieve smooth LED fading while built-in auto programs with sectional control generate complex looks in no time.

Its radiant cooling and fan-free design make this fixture ideal for sound-sensitive environments.

Highlights:

Versatile hex-color LED wash light with brilliant eye candy effects
ILS compatibility for use in the ILS ecosystem
Generate complex looks easily with built-in, eye-catching auto programs with sectional control
Adjustable barn doors help direct and focus the light
Control options include IRC-6 remote, Master/Slave, DMX, or ILS
Achieve smooth LED fading with built-in dimming curves
Ideal for sound-sensitive environments due to the radiant cooling design and no fan
Save time running extension cords by power linking multiple units.

What's Included

SlimBANK H18 ILS
Power cord
Barn doors
Quick Reference Guide

Specifications:

DMX Channels: 6, 8, 12 or 22
DMX Connectors:3-pin XLR
Light Source: 18 LEDs (hex-color RGBAW+UV) 6.2 W, (1.6 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Beam Angle: 27°
Field Angle: 43°
Illuminance: 3,111 lux @ 2 m
Lumens: 3,356
Power Linking: 8 units @ 120 V; 14 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 68 W, 1 A @ 120 V, 60 Hz, 67 W, .5 A @ 230 V, 50 Hz
Weight: 6 lb. (2.7 kg)
Size: 8.2 x 14 x 2.2 in (208 x 355 x 55 mm)
Approvals: CE, RoHS
Optional Controllers: IRC-6, ILS Command
Bracket Mounting Hole: 13 mm
Beam Angle: 27°
Field Angle: 43°
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

1 Year Warranty
