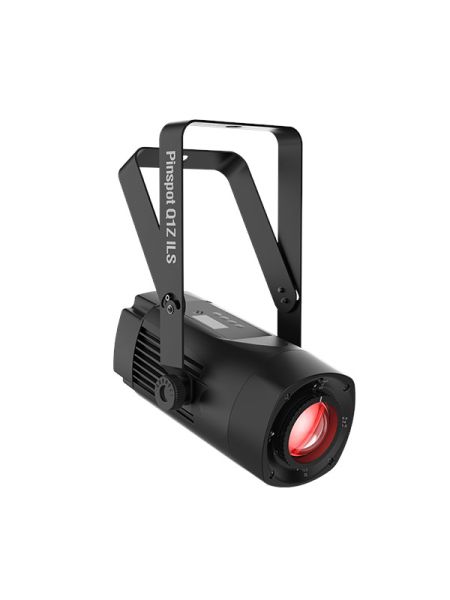

PinSpot Q1Z ILS is a compact 20-watt quad-color (RGBW) LED pinspot fixture with easy menu navigation from the OLED display.

ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3.

Its manual zoom brings versatility to both short and long throw applications. Conveniently control this easy-to-use fixture with the IRC-6 remote, or your chosen ILS leader such as the ILS Command.

Compact pinspot fitted with a 20W quad-color RGBW LED
Manual zoom for short or long throw applications
D-Fi USB compatibility for wireless master/slave or DMX control
Easy navigation and access to all functions directly from the OLED display
Convenient, wireless non-DMX control using the IRC-6 remote.
Fits best in the CHS-40 VIP Gear Bag

DMX Channels: 4, 6, or 7
DMX Connectors: 3-pin XLR
Light Source: 1 LED (quad-color RGBW) 20 W, (5.3A), 50,000 hours life expectancy
Strobe Rate: 0 to 33 Hz
Zoom Angle: 5° to 25°
Lumens: 617
Weight: 3 lb (1.36 kg)
Size: 12.1 x 3.5 x 8.5 in (308 x 89 x 217 mm)
Approvals: CE, UKCA, ROHS
Power and Current: 9 W, .3 A @ 120 V, 60 Hz
Power and Current: 20 W, .2 A @ 230 V, 50 Hz
Optional Controllers: IRC6, ILSCOMMAND
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Bracket Mounting Hole: M12
Illuminance: (narrow): 4,081 lux @ 2 m
Illuminance: (Wide): 623 lux @ 2 m

1 Year Warranty
