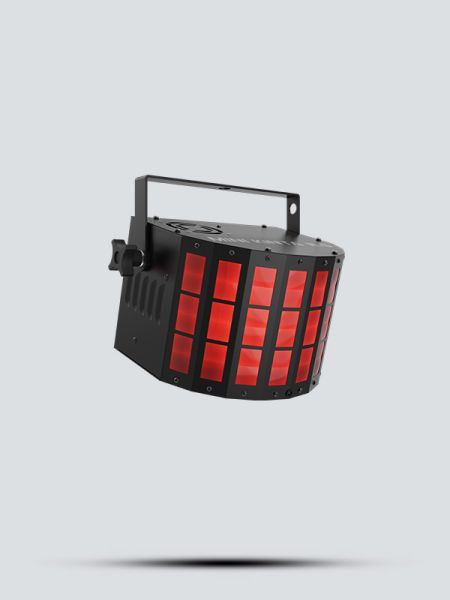

Small but mighty, Mini Kinta ILS packs a punch with countless beams of multicolor light bright, colorful beams using high-power red, green, blue, and white LEDs and fills the room with eye-catching effects as light shines through 48 lenses.

Mini Kinta ILS also has ILS compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Trigger built-in automated and sound-activated programs in Master/Slave or DMX mode or take advantage of simple wireless, non-DMX control from an optional IRC6 remote. Mini Kinta ILS lets you match the mood at any event by controlling the motor speed in DMX mode.

Compact LED effect light projects countless beams of multicolor light
D-Fi USB compatibility for wireless Master/Slave or DMX control
Simple wireless, non-DMX control from an optional IRC6 remote
Projects bright, colorful beams using high-power red, green, blue, and white LEDs
Trigger built-in automated and sound-activated programs in Master/Slave or DMX mode
Fills the room with eye-catching effects as light shines through 48 lenses
Match the mood at any event by controlling the motor speed in DMX mode
Save time running cables and extension cords by power linking multiple units

DMX Channels:4 or 8

DMX Connectors:3-pin XLR

Light Source:4 LEDs (1 red, 1 green, 1 blue, 1 white) 3 W, (980 mA), 50,000 hours life expectancy

Coverage Angle:135°

Power Linking:33 units @ 120 V; 54 units @ 230 V

Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current:
19 W, 0.3 A @ 120 V, 60 Hz
18 W, 0.2 A @ 230 V, 50 Hz

Weight:3.6 lb (1.7 kg)

Size:7.5 x 10.1 x 7.2 in (190 x 258 x 182 mm)

Approvals:CE, RoHS, UKCA

Optional Controllers: IRC6

WHAT'S INCLUDED

Mini Kinta ILS

Power cord

Quick Reference Guide

1 Year Warranty
