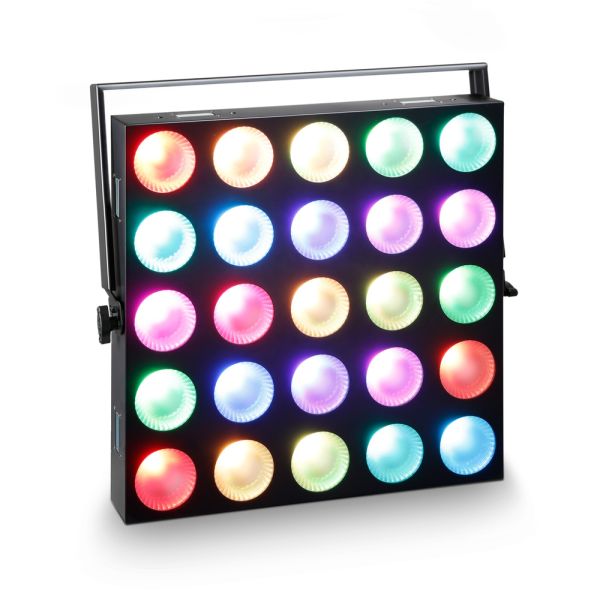

Cameo MATRIX PANEL 10 W RGB
SKU
312871
£599.00
Back Order
Cameo MATRIX PANEL 10 W RGB
Category: DJ Effects Lighting
With a 5 x 5 array of 10 watt RGB LEDs, 40° beam spread and flicker-free performance the Cameo Matrix Panel creates exciting blinder, chase and strobe effects. Featuring powerful single pixel control, it is the perfect choice for mapping alphabetic characters, numerals and complete messages. Recessed latches on all sides enable joining multiple panels for large, impressive backdrops.
The Matrix Panel 10 RGB includes five modes of DMX control, sound activation, built-in auto run programs and 4 selectable dimming curves. It sports master, slave and standalone capability, a bright 4-button display plus a low-noise fan for cool and quiet operation. The ultra flat all-metal housing provides 3 and 5-pin DMX inputs and outputs and Power Twist connectors for easy daisy-chaining. The Matrix Panel comes with a safety eye, swivel bracket and two omega brackets and runs on all voltages from 100 - 240 volts AC.
The Matrix Panel 10 RGB includes five modes of DMX control, sound activation, built-in auto run programs and 4 selectable dimming curves. It sports master, slave and standalone capability, a bright 4-button display plus a low-noise fan for cool and quiet operation. The ultra flat all-metal housing provides 3 and 5-pin DMX inputs and outputs and Power Twist connectors for easy daisy-chaining. The Matrix Panel comes with a safety eye, swivel bracket and two omega brackets and runs on all voltages from 100 - 240 volts AC.
- 5 x 5 Matrix Panel with single pixel control
- 25 x 10 W RGB LEDs
- 5 DMX modes, sound activation and built-in auto run programs
- Master, slave and standalone capability
- Blinder, chase and strobe effects
- Alphabetic character and numeral mapping
- 4 selectable dimming curves
- Flicker-free operation
- Ultra flat housing with low-noise fan
- Even more impressive in multiples
- Product type: LED MATRIX PANEL
- Type: 5 X 5 Matrix
- Colour spectrum: RGB
- Number of LEDs: 25
- LED type: 10 W RGB
- Dispersion: 40 °
- Refresh rate: 8000 Hz
- DMX input: XLR 3-pin male
- DMX output: XLR 3-pin female
- DMX mode: 19-channel, 28-channel, 3-channel, 5-channel, 78-channel
- DMX Functions: Auto programs, Dimmer Fine, master dimmer, sound programs, Stroboscope
- Standalone modes: Master / Slave mode, Music control
- Controls: Down, Enter, Mode, Up
- Indicators: 4-digit LED display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 180 W
- Power supply connector: Blue and white power I/O
- Housing material: Metal
- Cabinet colour: Black
- Cooling: fan
- Fuse: F3AL / 250 V
- Illuminance: 6950lx @ 1m
- Width: 580 mm
- Height: 580 mm
- Depth: 125 mm
- Weight: 13,7 kg
- Accessories (included): swivel bracket, 2x Omega Mounting Bracket, LED MATRIX PANEL, safety eyelet
1 Year Warranty
