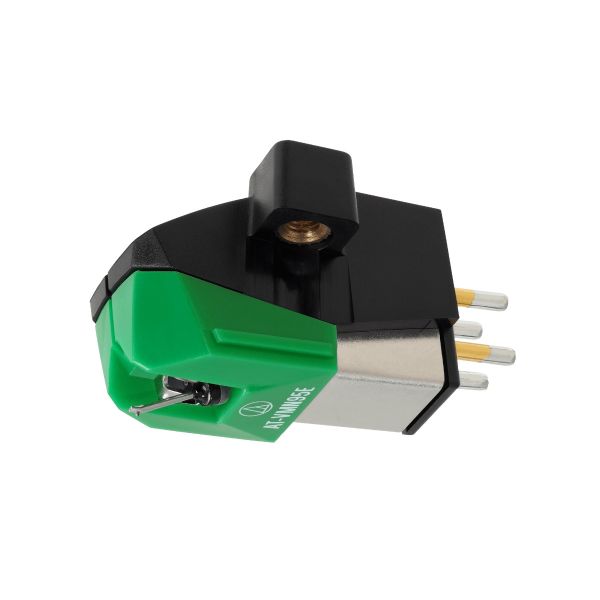

Audio Technica AT-VM95E Elliptical Stereo Cartridge
SKU
493826
£49.99
In stock
Audio Technica AT-VM95E Elliptical Stereo Cartridge
Category: DJ Cartridges & Styli
The AT-VM95E, the new Audio-Technica entry model Elliptical cartridge will replace the legendary AT95E and take advantage of the developments of the AT95EX introduced in 2015.
The AT-VM95E features an improved and distinctive design resulting in a more rigid low resonance housing, and two threaded inserts in the cartridge body enabling it to be mounted to the headshell or on an integral tonearm with just two screws, no nuts.
The AT-VM95E features an improved and distinctive design resulting in a more rigid low resonance housing, and two threaded inserts in the cartridge body enabling it to be mounted to the headshell or on an integral tonearm with just two screws, no nuts.
- Aluminium cantilever
- 4.0mV output voltage
- Compatible body with all VM95 Series stylus assemblies
- Replacement for AT95E and AT95EX
- 20 to 22,000Hz frequency response
- Frequency Response: 20 - 22,000 Hz
- Channel Separation: 20 dB (1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8 to 2.2g (2.0g standard)
- Stylus Construction: Bonded Round Shank
- Recommended Load Impedance: 47,000 Ω
- Coil Impedance: 3.3 kΩ (1 kHz)
- DC Resistance: 485 Ω
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 4.0 mV (@ 1 kHz, 5 cm/sec)
- Output Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: Elliptical
- Cantilever: Aluminium Pipe
- Static Compliance: 17 x 10 – 6 cm / dyne
- Dynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)
- Mounting: 1/2” centres
- Cartridge Weight: 6.1g
- Dimensions: 17.2 x 18.9 x 28.3 ( H x W x D mm)
- Accessories Included:
- Two 11 mm installation screws;
- Two 8 mm installation screws;
- Two washers
- Model: AT-VM95E
- Recommended Load Capacitance: 100-200 pF
- Replacement Stylus: AT-VMN95E
- Stylus Size: 0.3 x 0.7 mil
- Type: VM Stereo Dual Magnet
- Wire Used for Coil: T.P. Copper
1 Year Warranty
