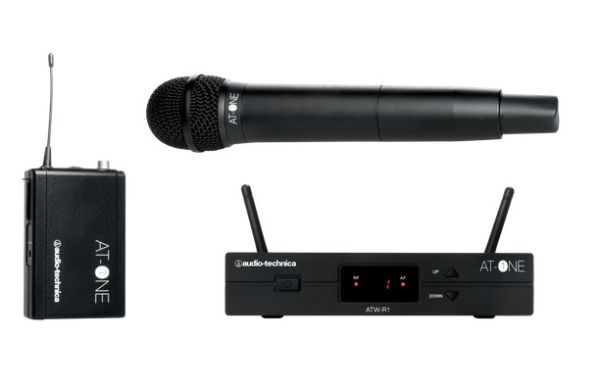

Audio Technica AT-One ATW-13HH Wireless Handheld Microphone System
SKU
554271
Categories: Microphones, Wireless Microphones, Microphones, Wireless Microphones
- Designed for quick and easy use
- Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
- The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
- Users can choose up to 4 channels in a group
- The ATW-11 system is equipped with a discreet and robust pocket transmitter
- RF transmission power 10mW
- The bodypack transmitter has a 4-pin HRS connector, which is able to connect to all Audio-Technica wireless microphones
- Up to 10 hours' battery life with 2 x 1.5V AA batteries
- RF Indicator light
- Robust construction from high quality components
- Delivered in a transport case with a rack mount kit and detachable antennas
Overall System
Handheld Transmitter
Receiver
- Operating Frequencies: F-Band: 824 - 831 MHz, 863 - 865 MHz
- Modulation Mode: FM
- Frequency Response: 60 Hz - 16 kHz
- Frequency Stability: +/- 0.005%, Phase lock loop frequency control
- Operating Range: 60m, typical
- Number Of Channels: 2 x 4 frequencies
Handheld Transmitter
- RF Power Output: 10 mW
- Spurious Emissions: Following national regulations
- Microphone Element: Cardioid condenser
- Battery Type: Two 1.5V AA alkaline (not included)
- Battery Life: 10 hours - depending on battery type and use pattern
- Dimensions: 66 mm x 98 mm x 22 mm (W x H x D)
- Net Weight: 277 g without batteries
- Accessories Included: AC Adapter, Antennas, Rack mount adapter, protective carrying case
- RF Power Output: 10 mW
- Battery Life: 10 hours - depending on battery type and use pattern
- Battery Type: Two 1.5V AA alkaline (not included)
- Dimensions: 66 mm x 98 mm x 22 mm (W x H x D)
- Input Connections: Pin 1: GND Pin 2: INST Pin 3: Mic Pin 4: DC Bias +10V
- Net Weight: 71 g without batteries
- Spurious Emissions: Following national regulations
Receiver
- Receiving System: Antenna switching diversity
- Image Rejection: 55dB minimum
- Sensitivity: 10dBµV (S/N 60dB @ 20 kHz deviation)
- Antenna Input: BNC type, 50 - BIAS voltage 12V DC 100mA each
- Dimensions: 200 mm x 42 mm x 122 mm (W x H x D)
- Weight: 418 g without accessories
- Accessories Included: AC Adapter, Antennas, Rack mount adapter, protective carrying case
- Output Connectors (Instrument): Unbalanced: 6.3 mm mono jack
- Output Connectors (Microphone): tipo XLRM, balanceado
- Total Harmonic Distortion: <1% - 20 kHz deviation @ 1 kHz
1 Year Warranty
