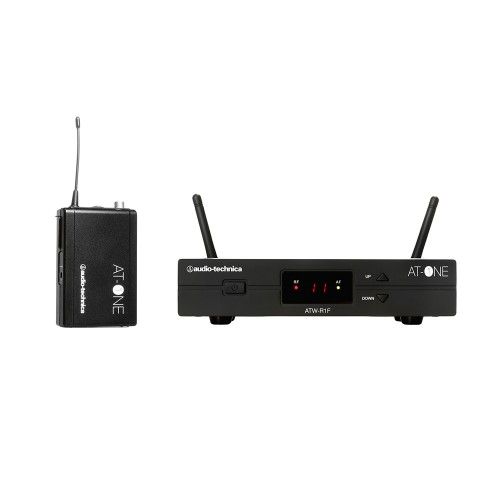

Audio Technica AT-One ATW-11/PF Beltpack System With ATR35CW
AT-One, Audio-Technica’s entry level UHF wireless system. With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.
AT-One is designed with simplicity and ease-of-use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry level price. The AT-One’s frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide license free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group.
Available in three configurations, AT-One can be purchased with a beltpack or handheld transmitter. The ATW-11 comes equipped with a sturdy, discreetly designed beltpack, providing 10mW RF output power, damping switch and a battery life of 10 hours.
Designed for quick and easy use
Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
Users can choose up to 4 channels in a group
The ATW-11 system is equipped with a discreet and robust pocket transmitter
RF transmission power 10mW
The bodypack transmitter has a 4-pin HRS connector, which is able to connect to all Audio-Technica wireless microphones
Up to 10 hours battery life with 2 x 1.5V AA batteries
RF Indicator light
Robust construction from high quality components
Delivered in a transport case with a rack mount kit and detachable antennas
Operating Frequencies - F-Band: 824 - 831 MHz, 863 - 865 MHz
Number Of Channels - 2 x 4 frequencies
Frequency Stability - +/- 0.005%, Phase lock loop frequency control
Modulation Mode FM
Frequency Response - 60 Hz - 16 kHz
Operating Range 60m, typical
Receiver
Receiving System - Antenna switching diversity
Image Rejection - 55dB minimum
Dynamic Range - HH: 108 dB, BP 103 dB (@ max deviation)
Sensitivity - 10dBµV (S/N 60dB @ 20 kHz deviation)
Total Harmonic Distortion - <1% - 20 kHz deviation @ 1 kHz
Audio Output Unbalanced - -2dBV
Audio Output Balanced - 4dBV
Output Connectors (Microphone) - Balanced: XLRM-type
Output Connectors (Instrument) - Unbalanced: 6.3 mm mono jack
Maximum Output Level - Mic / Line (0 / -20dB)
Antenna Input - BNC type, 50 - BIAS voltage 12V DC 100mA each
Dimensions - 200 mm x 42 mm x 122 mm (W x H x D)
Weight - 418 g without accessories
Accessories Included - AC Adapter, Antennas, Rack mount adapter, protective carrying case
Belt Pack
RF Power Output - 10 mW
Spurious Emissions - Following national regulations
Input Connections - Pin 1: GND
Pin 2: INST
Pin 3: Mic
Pin 4: DC Bias +10V
Battery Type - Two 1.5V AA alkaline (not included)
Battery Life - 10 hours - depending on battery type and use pattern
Dimensions - 66 mm x 98 mm x 22 mm (W x H x D)
