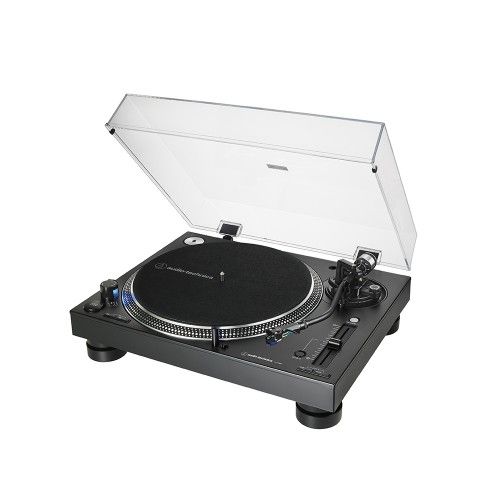

Audio Technica AT-LP140XP Professional Direct Drive Turntable
High-Torque Direct Drive Turntable with detachable RCA output cable, 45 RPM adapter, counterweight, felt mat, removable hinged dust cover, and high-output AT-XP3 DJ cartridge included.
AT-LP140XP BLACK - Professional Direct Drive Manual Turntable
The AT-LP140XP fully manual professional DJ turntable features a high-torque direct-drive motor and anti-resonant, mass-damped, die-cast aluminium platter to ensure stable, on-axis rotation at 33-1/3, 45, and 78 RPM. It is equipped with an S-shaped tonearm with height adjustment, adjustable tracking force (counterweight) and adjustable dynamic anti-skate control.
Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the durable, high-output AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus included with the turntable. It comes pre-mounted to an AT-HS6 universal ½"-mount headshell.
Designed to connect to components with a dedicated phono input, the turntable comes with a detachable dual RCA output cable which supplies a strong 5.5 mV phono output.
Additional professional features include a start/stop button; forward and reverse play; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-8%, +/-16%, and +/-24% adjustment ranges; a stroboscopic platter with speed indicator; a retractable plug-type stylus target light; and a removable hinged dust cover.
- Experience high-fidelity audio and professional DJ performance
- Direct-drive, high-torque servo motor with speed stabilization
- Fully manual operation
- Adjustable dynamic anti-skate control
- Selectable 33/45/78 RPM speeds
- Professional anti-resonance, mass-damped, die-cast aluminium platter with felt mat
- AT-HS6 universal ½"-mount headshell and AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus
- Balanced S-shaped tonearm with hydraulically damped lift control, height adjustment, and lockable rest
- Dedicated phono-level output (5.5 mV)
- Stroboscopic platter with speed indicator
- Forward/reverse operation and variable pitch control with quartz speed lock
- Retractable plug-type target light for easier cueing in low light
- Damped base construction for reduced low-frequency feedback coloration
- Includes: detachable RCA output cable (dual RCA male to dual RCA male), power cable, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover
- Experience high-fidelity audio and professional DJ performance
- Direct-drive, high-torque motor
- Fully manual operation
- Adjustable dynamic anti-skate control
- Professional anti-resonance, mass-damped, die-cast aluminium platter
- Including AT-XP3 cartridge with AT-HS6 universal half inch-mount headshell
| Turntable | |
|---|---|
| Drive Method | Direct drive |
| Type | 3-speed, fully manual operation |
| Motor | High-torque DC motor |
| Speeds | 33-1/3 RPM, 45 RPM, 78 RPM |
| Pitch Variation | +/-8% or +/-16% or +/-24% |
| Turntable Platter | Die-cast aluminium |
| Starting Torque | 2.2 kgf-cm |
| Wow and Flutter | <0.2% WRMS (33 RPM) |
| Signal-to-Noise Ratio | >50 dB |
| Output Level | 5.5 mV nominal at 1 kHz, 5 cm/sec |
| Power Supply Requirements | 115/230V AC, 60/50 Hz |
| Power Consumption | 4.3 W |
| Weight | 10.0 kg |
| Cartridge & Stylus | |
|---|---|
| Model | AT-XP3 |
| Type | VM Dual Magnet |
| Output Voltage | 5.5 mV (@ 1.0 kHz, 5cm/sec) |
| Vertical Tracking Force Range | 2.0 to 4.0 g (standard 3.0 g) |
| Stylus Shape | Conical |
| Stylus Size | 0.6 mil |
| Recommended Load Impedance | 47,000 ohms |
| Weight | 6.2 g |
| Headshell | |
|---|---|
| Model | AT-HS6 |
| Weight | 9 g |
| Tone arm | |
|---|---|
| Type | Balanced S-shaped tonearm with detachable headshell |
| Effective Length | 230.5mm |
| Overhang | 16mm |
| Maximum Tracking Error Angle | Less than 3 degree |
| Applicable Cartridge Weight | 3.5 - 8.5 g |
| Anti-skating Range | 0-4 g |
