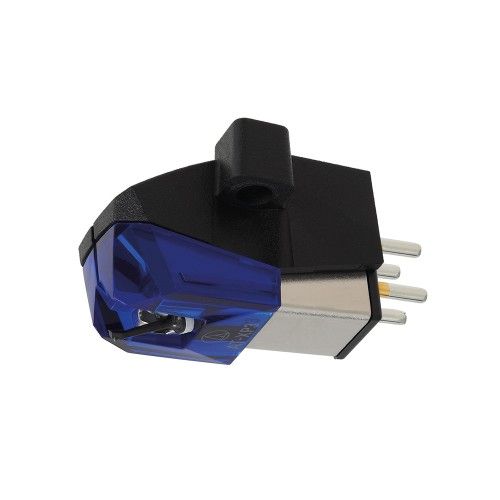

AT-XP3 Dual Moving Magnet Stereo Cartridge & Styli
The AT-XP series cartridges provide a high quality sound for vinyl DJ’s.
Offering all of the features of a DJ cartridge, but with a Hi-fi sound, the XP series are perfect for the stage and club DJ who prioritises sound quality.
Audiophile DJ cartridge equipped with a conical stylus
Audiophile DJ cartridge equipped with a conical stylus
VM dual magnet construction
Durable robust design for high-quality specialist DJ playback
Signal output level and output impedance characteristics suited for professional DJ applications
Carbon fibre-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
Compatible with the replacement styli ATN-XP5 and ATN-XP7 for an upgrade
Configuration as single cartridge (AT-XP3), Replacement Stylus (ATN-XP3)
Model - AT-XP3
Mounting - Half-inch
Frequency Response - 20 to 18,000 Hz
Channel Separation - 20 dB (1 kHz)
Output Channel Balance - 2.0 dB (1 kHz)
Output Voltage - 5.5 mV (at 1 kHz, 5 cm/sec)
Vertical Tracking Angle - 20 degrees
Vertical Tracking Force Range - 2.0 to 4.0g (standard 3.0 g)
Stylus Shape - Conical
Stylus Size - 0.6 mil
Stylus Construction - Bonded Round Shank
Cantilever - Carbon reinforced ABS
Coil Impedance - 6,700 ohms (1 kHz)
Coil Inductance - 550 mH (1 kHz)
Static Compliance - 20 x 10 – 6 cm / dyne
Dynamic Compliance - 6.0 x 10 – 6 cm / dyne (100 Hz)
Recommended Load Impedance - 47,000 Ω
Recommended Load Capacitance - 100-200 pF
Cartridge Weight - 6.2g
Dimensions - 17.2 x 17.8 x 28.3 ( H x W x D mm)
Replacement Stylus - ATN-XP3
Accessories Included - Two 11 mm installation screws;
Two 8 mm installation screws
Two washers
Two Nut
Non-magnetic screwdriver
